Ultra efficient High Bay light fixtures round circuit board led pcb module customized 3030 PCBA LED

Item No.:NKT-10-XX-160-3

ROUND CUSTOMIZABLE LED MODULES Available length:3'', 4'', 5'', 6’’, 8’’, 10’’ 12'' High efficacy LED modules CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K CRI > 80 and > 90 Applications: Hotel, Parking lot, Office, Home etc. Poke in connectors Service life: 60000 hours 5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-10-XX-160-2	Product name:	LED PCBA
Shape:	Round	LED Type:	led pcba customized
Voltage:	Max 46v	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 2000mA
Dimension:	Diameter is 10''	PCB Material:	Aluminum
LED QTY:	160pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 92W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	High bay lighting

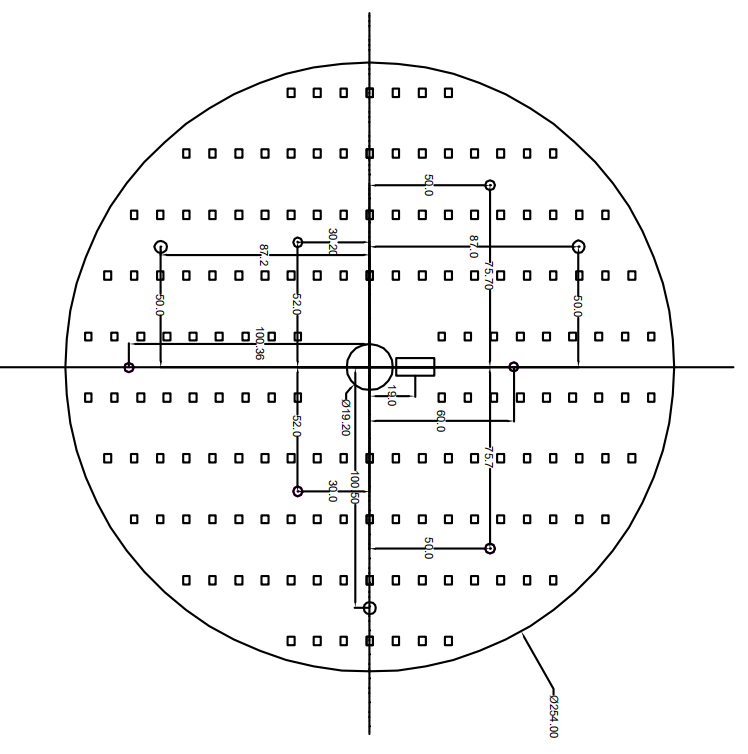

Product Dimension:
custom led ring pcb layout, led ring module layout, round led pcb layout

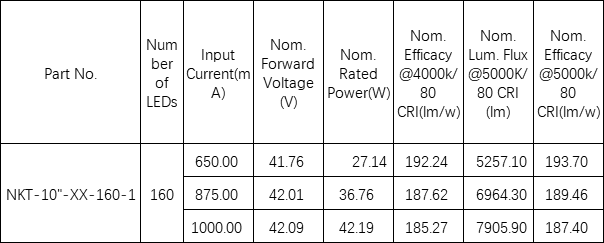

Technical Parameters:
DC led strip module 10'' samsung SMD 3030 round led pcb board 94v0 driverless manufacture custom led ring pcb

Product Applications:
driverless pcb board applications, round pcb board applications
