Item No.:NKT-58-40-196

Surface mount technology SMT assembly soldering led light smd pcb circuit board for led strip lights

Product Advantages:
-Can be snapped in the middle, save the stock and shipping fees.
-Poke in connectors for easy assembly
-2700K, 3000K, 3500K, 4000K, 5000K and 6500K are available
-Mouse bite design for easy assembly
-High reflective PCB paint improves high efficacy

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Nominal voltage	37-42V	Wattage	Max 117.6W
Current	Max 2800mA	Product thickness	1.6mm
Product size	1470*20mm	Product weight	50g
Type of current	DC	Number of LEDS per module	196

Photometrical data:

Luminous efficacy	185lm/w	Consistent white light	< 3 SDCM
Color rendering index Ra	>80	Available olor temperature CCT	2700K, 3000K,3500K,4000K, 5000K, 6500K
Useful luminous flux (Φuse)	9500lm	Dimmable	No

Other information:

PCB Material	Aluminum or CEM-3	LED Brands	Seoul or Samsung
Performance temp.	50 °C	Temperature range at storage	-30~85 °C
Temperature range in operation at Tc point	-20~75 °C	Ambient temperature range	-2~+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Certifications	CE, RoHS, ETL	Guarantee	5Years

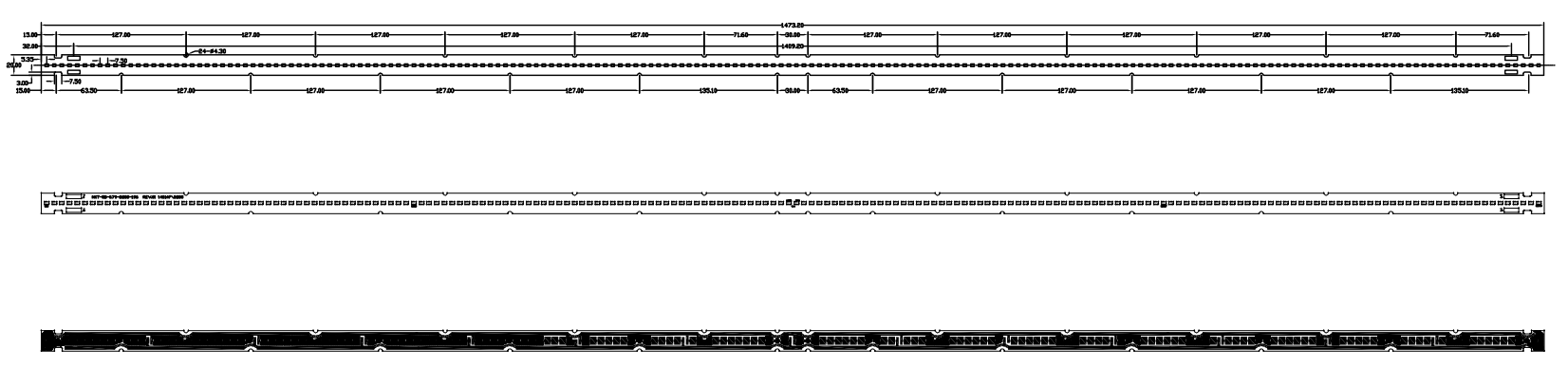

Product Demension:
smt led circuit board design, led strip light design, Surface mount technology design

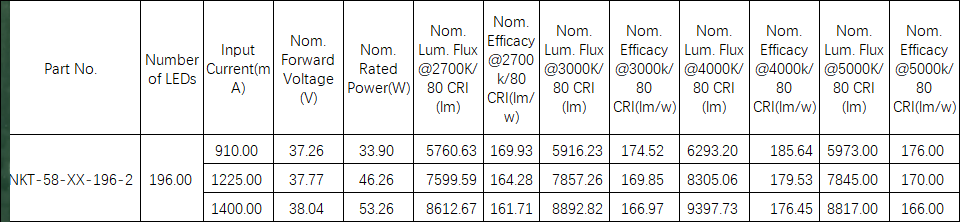

Technical Parameters:
smt led circuit board test, led strip light test, Surface mount technology test

Product Packaging:
smt led circuit board test package, led strip light test package, Surface mount technology test package

More prouct pictures:

smt led circuit board, led strip light, Surface mount technology

Installation & Assembly Guidelines:
Mounting:
• Led modules may be installed using the provided mounting slots/holes.
• Nylon washers should be used on the top side to prevent the screw-head from making electrical contact with traces.
• The led modules may also be mounted using thermal transfer adhesive.
• LEDs should not be touched or contacted during installation to avoid damage
Wire Connector
• Wire connectors will accept 18 to 24 AWG solid or bonded stranded wire.
• To remove wire from connector, depress the indent on the top of the terminal with a wire release tool, and pull the wire.
Electrostatic Sensitive Product
• Installation of Universal Douglas LED Modules should be in an environment that incorporates ESD protective measures.
• Technicians should be grounded and avoid contact with the LEDs when servicing LED Luminaires.

Product family features:

Module efficacy: up to 185 lm/W
Available with luminous flux: 500 lm on 5.5''(140 mm)
Available with luminous flux: 1000 lm on 11''( 280 mm)
Available with luminous flux: 2,000 lm, 4,000 lm on 19.5'' (500 mm)
Available with luminous flux: 4,000lm, 8000 lm on 44''(1,120 mm)
Available with luminous flux: 4500 lm, 9000lm on 58'' (1,500 mm)
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
