RoHs ceiling down light replacement light engine 220V AC 2835 SMD circular round dob modul pcb circuit board led module
Item No.:NKT-4-30-32
RoHs ceiling down light replacement light engine 220V AC 2835 SMD circular round dob modul pcb circuit board led module
Products advatages:
-No need for an external drive power supply.
- Touch protection accessory for simple use in luminaires
- High reliability
- Easy to use
- Optimised design for simple thermal management
- Enables thin and efficient luminaire designs
- High quality of light thanks to low modulation
- 5 year guarantee
- - MOQ 200pcs

Areas of application
Corridors, Stairways, Landings, Hallways etc
DESCRIPTION

Technical Data:

Nominal voltage

230V

Displacement factor

0.98

Input voltage range

220~240v

Max. ECG no. on circuit breaker 16 A (B)

235

Type of current

AC

Max. ECG no. on circuit breaker 10 A (B)

147

Energy consumption in on-mode

12 kWh/1000h

Inrush current

0.05A

On-mode power

10W

IEC-Pst(10KS/s)

0.371

Output SVM

0.173

Flicker Index

0.014


Photometrical data:

Luminous efficacy

140lm/w

Light color (designation)

 White

Colour consistency (McAdam ellipses)

3

Useful luminous flux (Φuse)

1380 lm

Color rendering index Ra

80

Correlated color temperature CCT

2700K, 3000K, 4000K, 5000K

Starting time

< 0.5 s

Warm-up time (60 %)

< 2.00 s


Temperatures & Operating confitions:

performance temp. acc. to IEC 62717

75 °C

Ambient temperature range

-20…+50 °C

Maximum temperature at tc test point

90 °C

Temperature range at storage

-20…85 °C



Lifespan:

Number of switching cycles

100000H

Lumen maintenance factor LMF

96

L70B50 lifetime

 50000 h







Additional product data:

Product name

dob led board

Lighting technology used

 LED

Certificate standards

CE/ENEC/UKCA/VDE

Type of protection

IP20

Energy efficiency class

D

Applications

Corridors, Stairways, Landings, Hallways etc

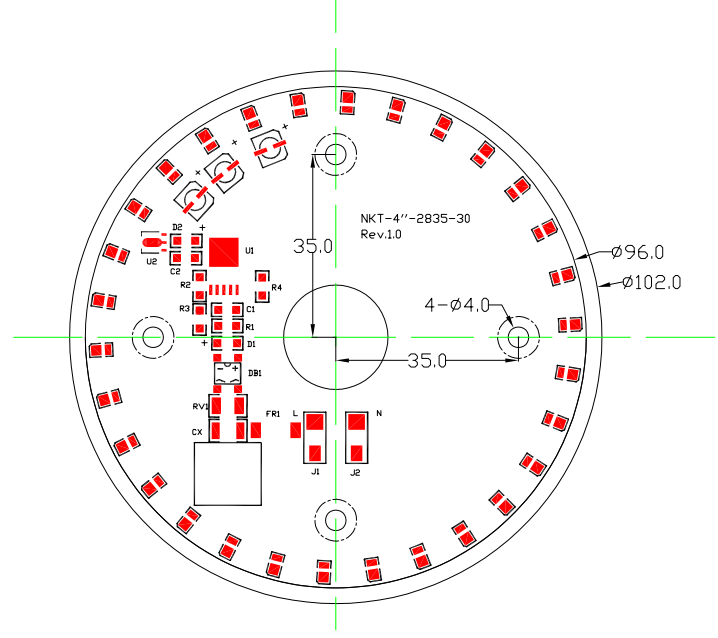

Product Demension:
        dob pcb led design, 220v led pcb layout, led light engine design



Product Packaging:

dob pcb led package, 220v led pcb package, led light engine packing


Application:

dob pcb led applications, 220v led pcb applications, led light engine applications

Installation & Assembly Guidelines:
Mounting:
• Led modules may be installed using the provided mounting slots/holes.
• Nylon washers should be used on the top side to prevent the screw-head from making electrical contact with traces.
• The led modules may also be mounted using thermal transfer adhesive.
• LEDs should not be touched or contacted during installation to avoid damage

Wire Connectors
• Wire connectors accept 18 to 24 AWG solid or bonded stranded wire.
• To remove wires from connectors, depress the indent on the top of the terminal with a wire release tool, and pull the wire.

Electrostatic Sensitive Product
• Installation of LED Modules should be in an environment that incorporates ESD protective measures.
• Technicians should be grounded and avoid contact with the LEDs when servicing LED Luminaires.


Certifications:


Product families:

round dc led pcba, dc led pcba, round led pcb

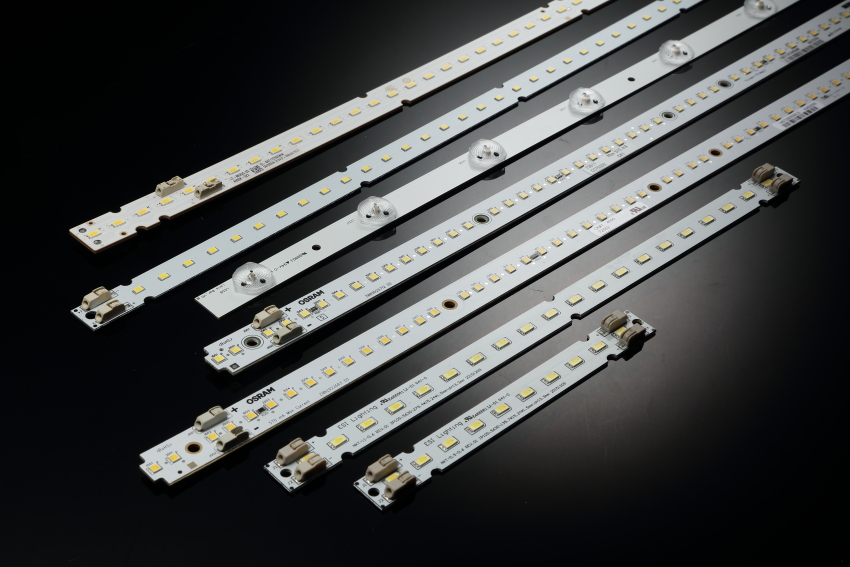

linear led module, linear led pcb, linear led pcb board
