Low flicker index and high efficacy Linear Indoor and outdoor driverless AC lamp module LED light engine

Item No.:NKT-16-40-36

Custom design just for display, not for sale
Available in 10W-60 W modules with CCT ranges from warm 3000K to cool 6000K
High CRI (>80) and an outstanding power factor (>0.9)
LM80 6000hrs completed
Circular shape dimensions are from 0.87” to 15”, square shape approximately 12″, and linear modules come in 5”, 11”, 19.5'' 22” 44'' lengths
Environmentally friendly; RoHS compliant

Areas of application
Architectural Lighting
High-End Retail
Linear
High Bay
Strip Lighting

INQUIRY

PDF FOMAT

DESCRIPTION

Technical Data:

Nominal voltage	230V	Displacement factor	0.98
Input voltage range	220~240v	AC module size	40X22MM
Type of current	AC	DOB module thickness	1.6mm
LED Quantity	36pcs	Inrush current	0.06A
On-mode power	12W	Output PSTLM	≤1
Output SVM	0.317

Photometrical data:

Luminous efficacy	120lm/w	Light color (designation)	White
Colour consistency (McAdam ellipses)	3	Useful luminous flux (Φuse)	1420 lm
Color rendering index Ra	80	Correlated color temperature CCT	2700K, 3000K, 4000K, 5000K
Starting time	< 0.5 s	Warm-up time (60 %)	< 2.00 s

Temperatures & Operating confitions:

performance temp. acc. to IEC 62717	75 °C	Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	90 °C	Temperature range at storage	-20…85 °C

Lifespan:

Number of switching cycles	100000H	Lumen maintenance factor LMF	96
L70B50 lifetime	50000 h

Additional product data:

Product name	led light engine	Lighting technology used	LED
Dimming range	1…100 %	Dimming interface	Phase Cut
Certificate standards	CE/ENEC/UKCA/VDE	Type of protection	IP20
Energy efficiency class	D	Applications	Corridors, Stairways, Landings, Hallways etc

Product family features:
AC Led light Engine is a great product for use in new or existing fixtures. The AC LED design has an integrated
DOB driver and therefore requires no External DC driver.The module provides extremely reliable life, good efficiency,
economical solution and is recommended for all of your indoor and retrofit applications, such as surface mount,
ceiling mount and wall sconces. Since there is no driver you can design a more compact, lower profile fixture.
A number of common lengths and wattages to fit all of your luminaire needs Smooth TRIAC/ELV dimming down to
5%. 5 year warranty. Listed on the Energy Star for utility rebate eligibility.

More detailed pictures:

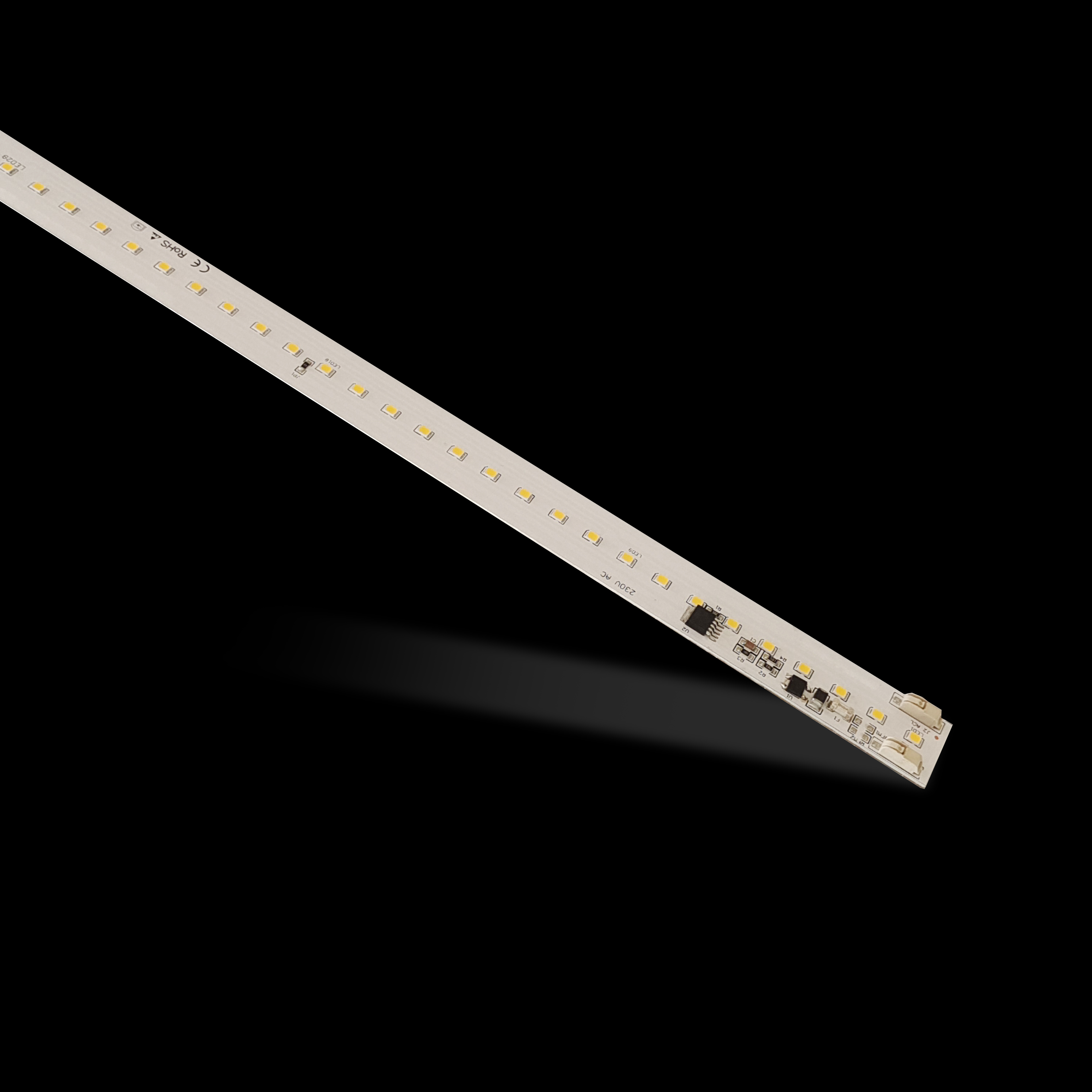

led lamp module, LED light engine, light engine

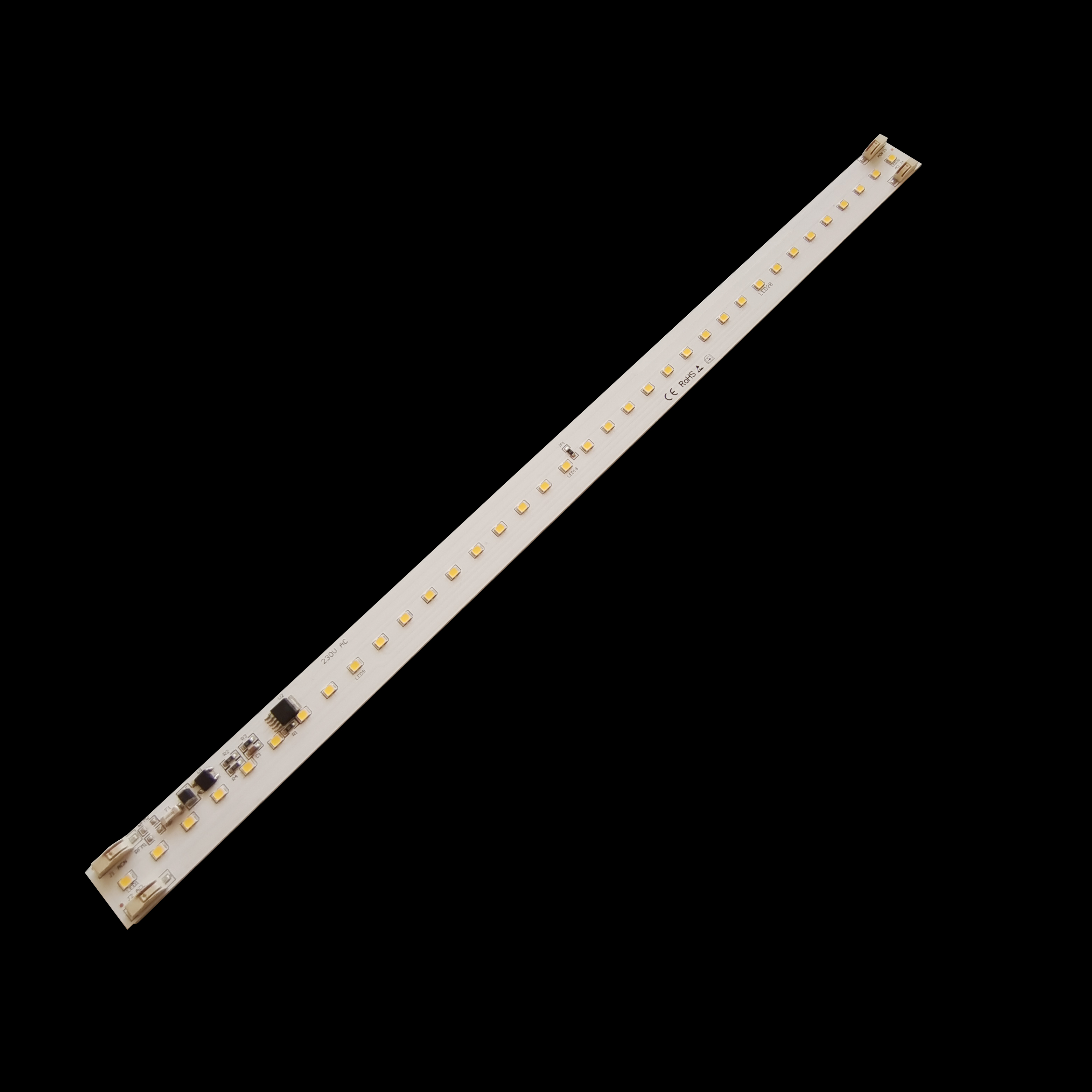

led lamp module, LED light engine, light engine

indoor led module, outdoor led module, indoor light engine
