LED Module meeting EU Energy label Class D and C for energy efficient applicances

Item No.:NKT-44-XX-144-5

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy up to 200lm/W met EU Energy standard Class D and C
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-44-XX-144-2	Product name:	LED module meet EU engery label
Shape:	Linear	LED Types:	2835 SMD LED
Voltage:	Max 34.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1800mA
Dimension:	1118.4201.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	144pcs	Luminous Efficacy:	200lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 63.72W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

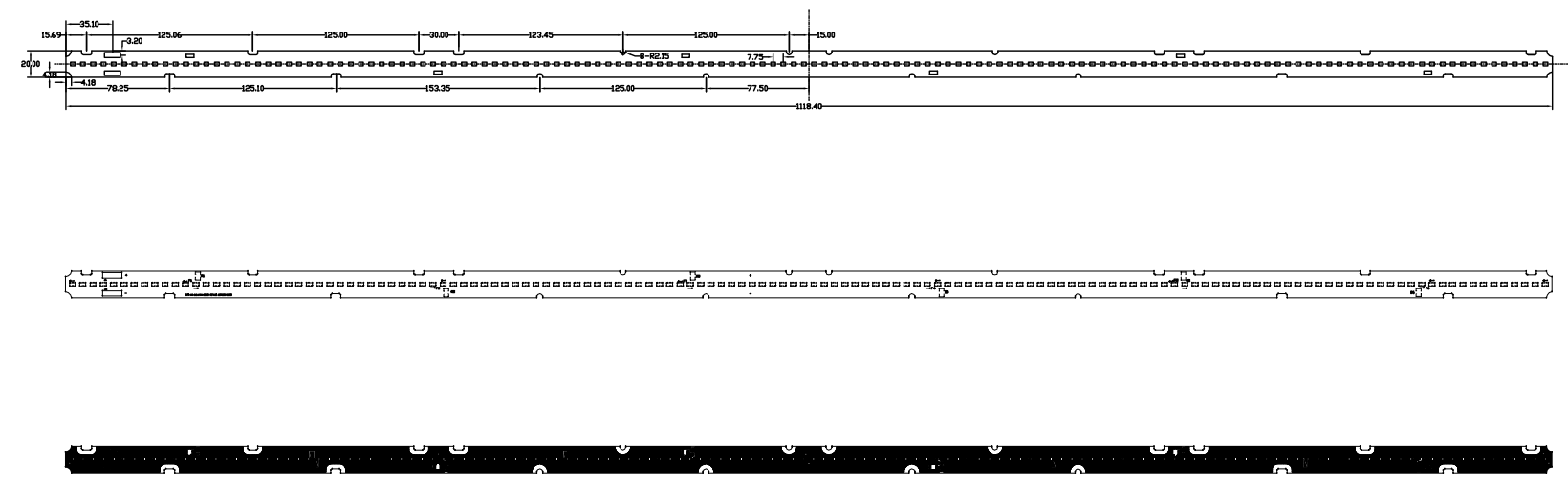

Product Dimension:
LED Module meeting EU Energy label Class D and C PCB layout

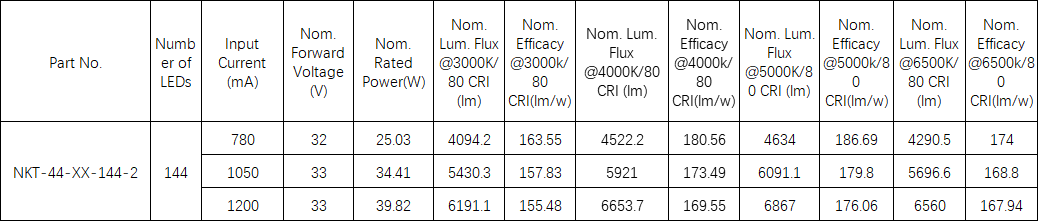

Technical Parameters:
LED Module meeting EU Energy label Class D and C parameters

EU New Energy Standard:
LED Module meeting EU Energy label Class D and C

Product packaging:

Product Applications:
LED Module meeting EU Energy label Class D and C application
