High efficiency Vapor Tight Fixture 1200mm 47.5'' smd led bar light rigid strip linear rigid pcb

Item No.:NKT-47.5-XX-78-3

High eficiency Vapor Tight Fixture 1200mm 47.5'' smd led bar light rigid strip linear rigid pcb

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-47.5-XX-78-2	Product name:	led linear rigid pcb
Shape:	Linear	LED Types:	led smd linear rigid
Voltage:	Max 37V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 900mA
Dimension:	1206.520.641.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	78pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 34.5W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

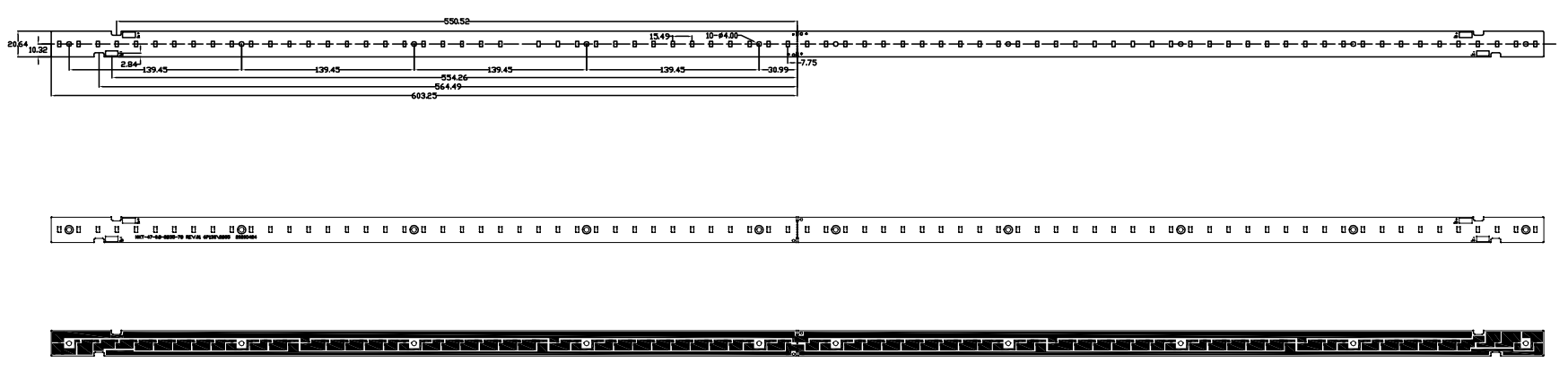

Product Dimension:
led smd linear rigid, led bar light rigid strip, led linear rigid pcb

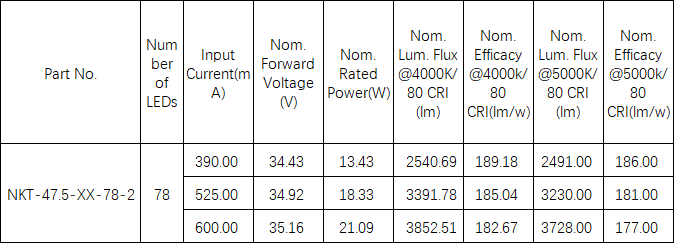

Technical Parameters:
led smd linear rigid tests, led bar light rigid strip test, led linear rigid pcb test

Product packaging:

Product Applications:
led smd linear rigid applications, led bar light rigid strip applications, led linear rigid pcb applications

led smd linear rigid applications, led bar light rigid strip applications, led linear rigid pcb applications
