European new energy standard ERP approved 9W 10W 12W flicker free 230V AC led dob board

Item No.:NKT-4-XX-36-3

Products advatages:
- Touch protection accessory for simple use in luminaires
- High reliability
- Easy to use
- Optimised design for simple thermal management
- Enables thin and efficient luminaire designs
- High quality of light thanks to low modulation
- 5 year guarantee

Areas of application
Corridors, Stairways, Landings, Hallways etc

INQUIRY

PDF FOMAT

DESCRIPTION

Technical Data:

Nominal voltage	230V	Displacement factor	0.98
Input voltage range	220~240v	Max. ECG no. on circuit breaker 16 A (B)	235
Type of current	AC	Max. ECG no. on circuit breaker 10 A (B)	147
Energy consumption in on-mode	12 kWh/1000h	Inrush current	0.71A
On-mode power	12W	Output PSTLM	≤1
Output SVM	0.317

Photometrical data:

Luminous efficacy	140lm/w	Light color (designation)	White
Colour consistency (McAdam ellipses)	3	Useful luminous flux (Φuse)	1500 lm
Color rendering index Ra	80	Correlated color temperature CCT	2700K, 3000K, 4000K, 5000K
Starting time	< 0.5 s	Warm-up time (60 %)	< 2.00 s

Temperatures & Operating confitions:

performance temp. acc. to IEC 62717	75 °C	Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	90 °C	Temperature range at storage	-20…85 °C

Lifespan:

Number of switching cycles	100000H	Lumen maintenance factor LMF	96
L70B50 lifetime	50000 h

Additional product data:

Product name	dob led board	Lighting technology used	LED
Dimming range	1…100 %	Dimming interface	Phase Cut
Certificate standards	CE/ENEC/UKCA/VDE	Type of protection	IP20
Energy efficiency class	D	Applications	Corridors, Stairways, Landings, Hallways etc

Beautiful thin wall and ceiling luminaires with homogeneous lid surface:
This device offers a variety in lighting: from DALI or Phase cut dimmable to HF detectors and emergency lighting. An integrated LED driver into the LED board and a touch protection accessory for a simple use in luminaires are some special features.

Beautiful Product family features:

Dimmable (with suitable Phase-cut dimmers)
Designed for wall and ceiling luminaires with diffuse light distribution
Low-cost LED replacement of CFL wall-, and ceiling luminaires
Driver integrated on LED board
Available diameter: 170 mm, 240 mm
Available with color temperature: 3,000 K or 4,000 K
Available with luminous flux: 1,500 lm, 2,500 lm, 3,300 lm
LED module is reinforced isolated to mounting surface
Photobiological safety according to IEC/TR 62778, risk group RG1

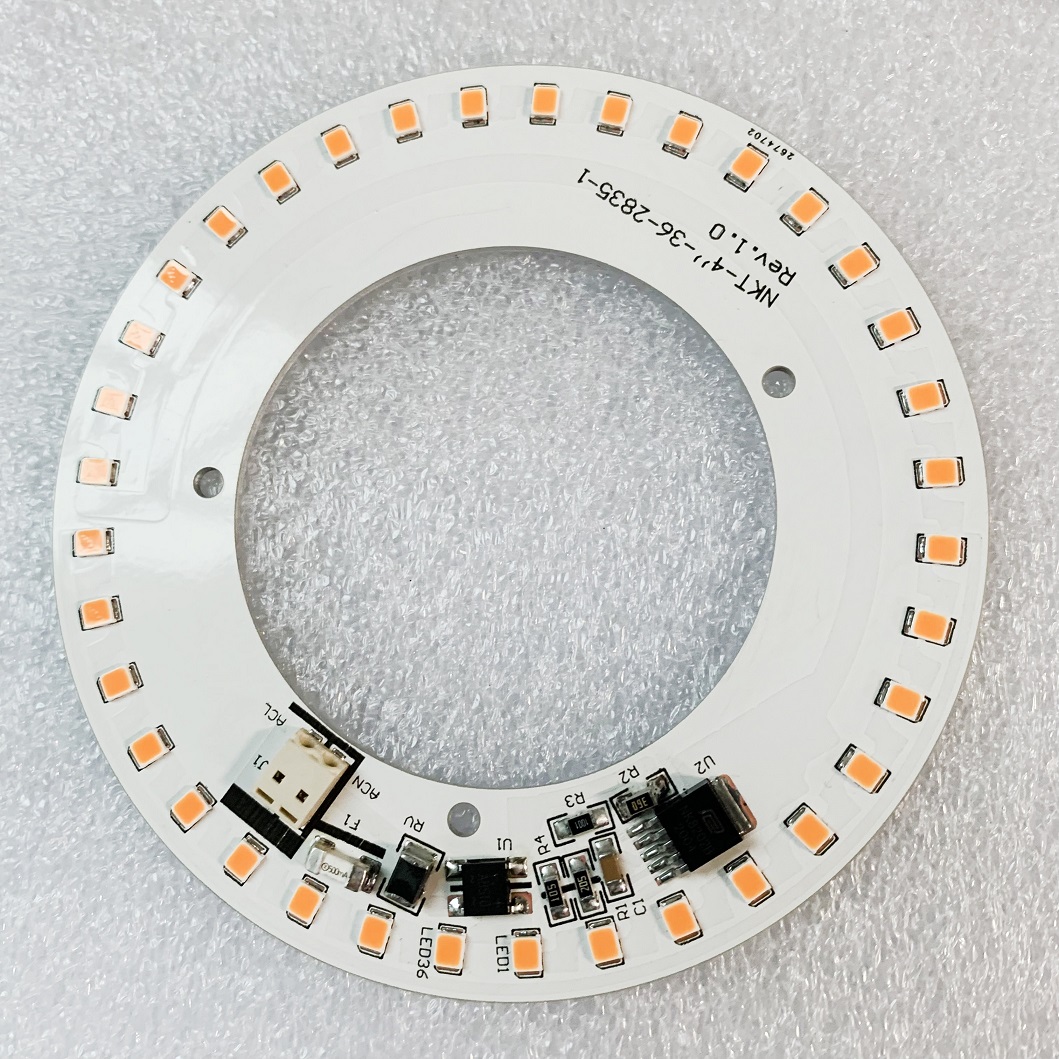

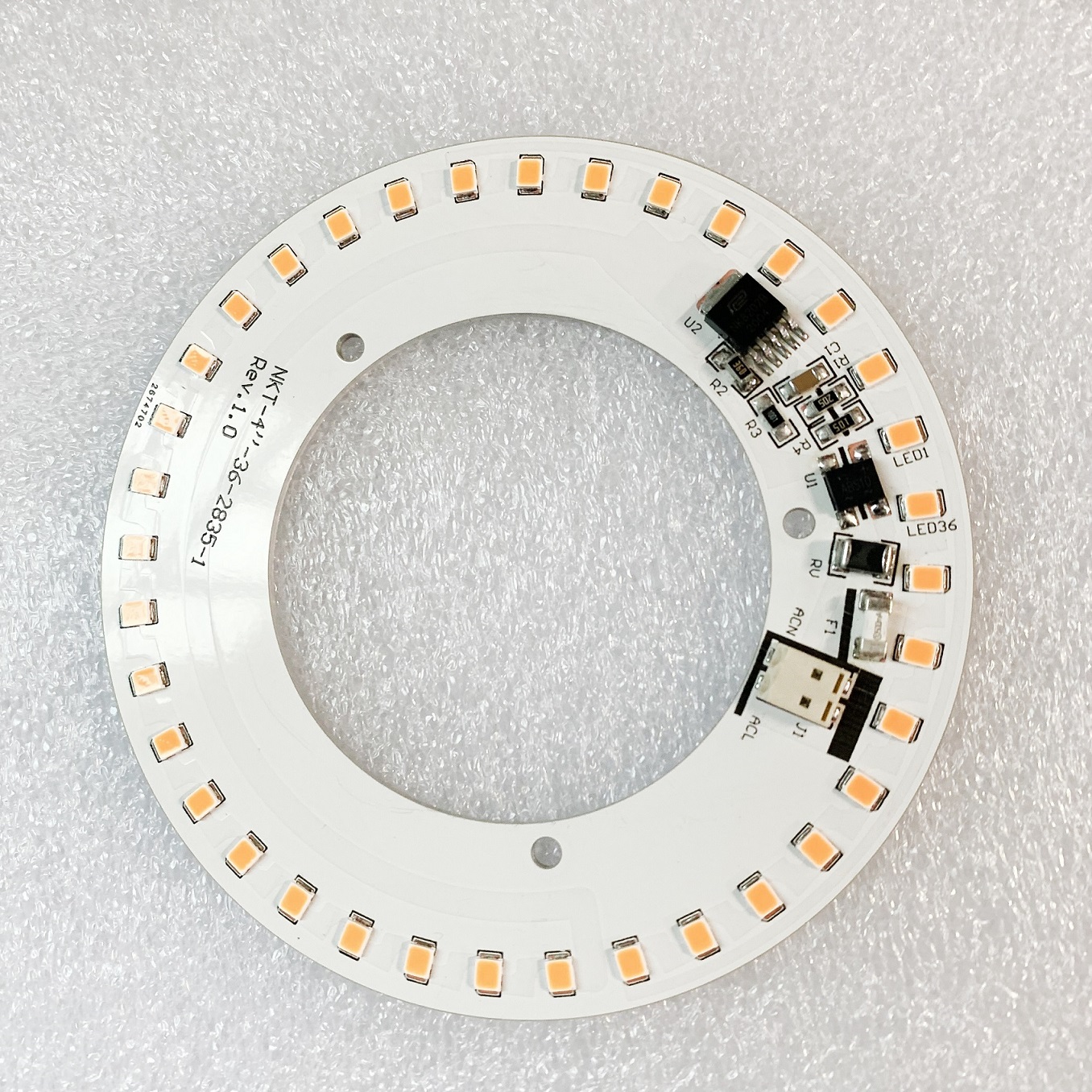

More detailed pictures:
