DIY indoor 19.5'' 80D hard  & S SMD led aluminum light bar 2835 LED module rigid light bar strips
Item No.:NKT-19.5-XX-80-2
DIY indoor 19.5'' 80D hard & S SMD led aluminum light bar 2835 LED module rigid light bar strips
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-19.5-XX-80-2 Product name: led light bar strips
Shape: Linear LED Types: 2835 SMD LED
Voltage: Max 28.5V Color: White
LED Chip: Seoul & Samsung Input Current: Max 1200mA
Dimension: 495.3*15.24*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 80pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 35.4W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

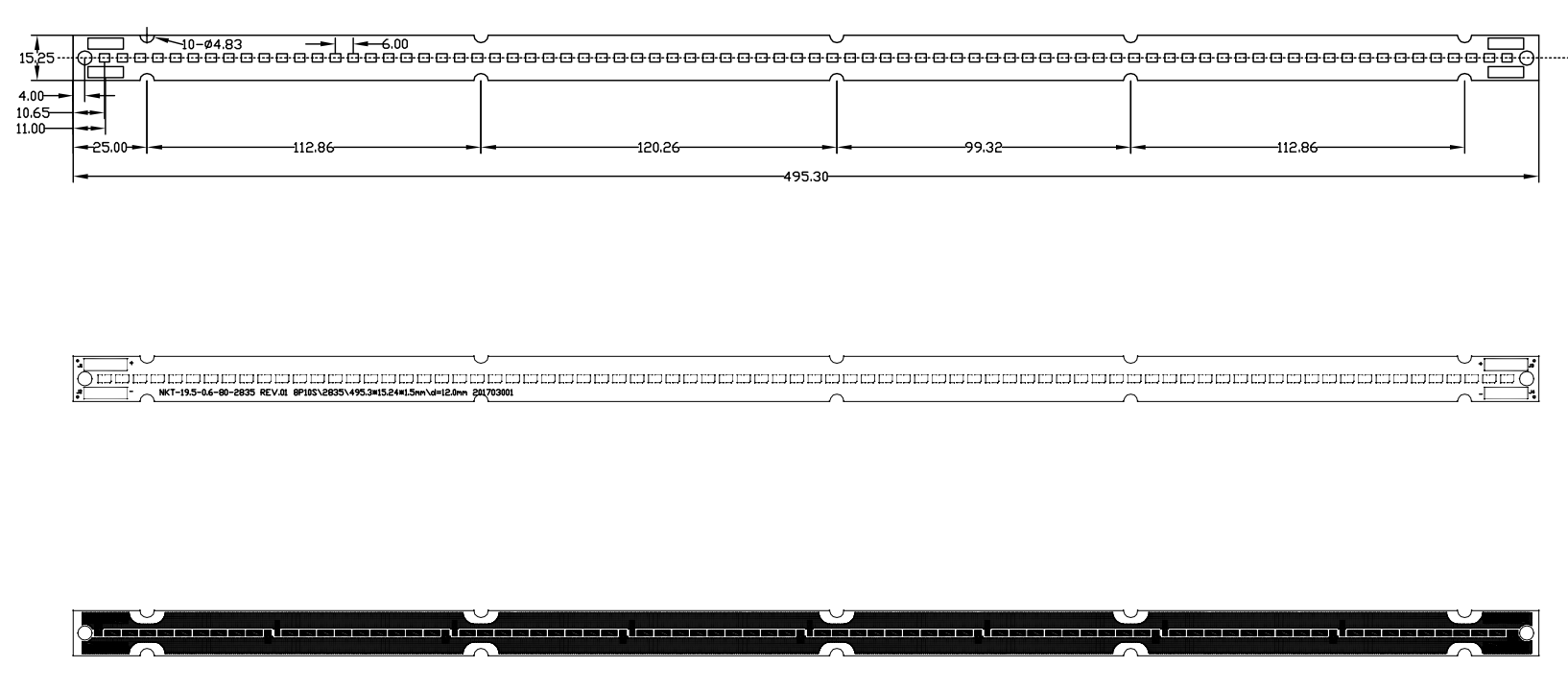

Product Dimension:
led light bar strips, led aluminum light bar, led rigid light bar

Technical Parameters:
led strip bar light, rigid led light bar, led light strip bar


Product packaging:
led strip bar light rigid, led light bar, led light strip bar

Product Applications:

led hard light bar strip, led light bar, led strip module, led module strip
