DIY cuttable Best price china led in pcb design assembly manufacturer smd led on circuit board

Item No.:NKT-33-XX-72

Product Advantages:
-Slim luminaire design by small and flexible form factor
-High homogeneity thanks to small LED pitch
-High voltage (HV) for serial connection
-Low voltage (LV) for parallel connection
-High voltage (HV) optimized for non-isolated, low voltage (LV) -optimized for SELV operation
-Adjustable luminous flux, efficacy and lifetime
-Direct the light where it’s needed while using PrevaLED Linear --Optics
Areas of application
-Office
-Industry

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Nominal voltage	32-34V	Wattage	Max 40.8W
Current	Max 1200mA	Product thickness	1.6mm
Product size	279.4*20mm	Product weight	50g
Type of current	DC	Number of LEDS per module	72

Photometrical data:

Luminous efficacy	187lm/w	Consistent white light	< 3 SDCM
Color rendering index Ra	>80	Available olor temperature CCT	2700K, 3000K,3500K,4000K, 5000K, 6500K
Useful luminous flux (Φuse)	2333lm	Dimmable	No

Other information:

PCB Material	Aluminum or CEM-3	LED Brands	Seoul or Samsung
Performance temp.	50 °C	Temperature range at storage	-30~85 °C
Temperature range in operation at Tc point	-20~75 °C	Ambient temperature range	-2~+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Certifications	CE, RoHS, ETL	Guarantee	5Years

Product Demension:

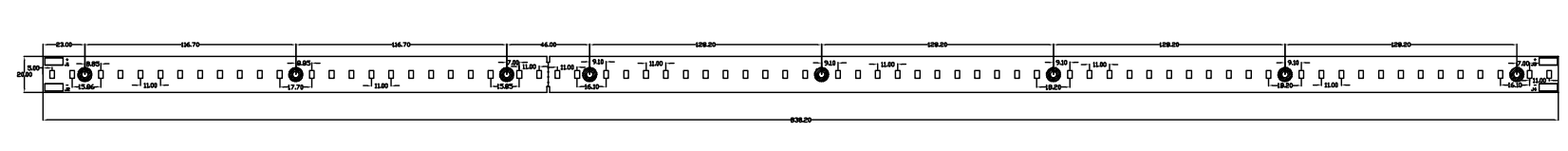

smd led on circuit board layout

Technical Parameters:

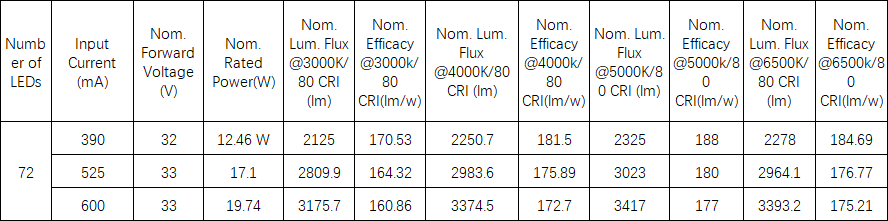

smd led on circuit board parameters

Product Packaging:

More prouct pictures:

led on circuit board, led in pcb, led pcb manufacture

Installation & Assembly Guidelines:
Mounting:
• Led modules may be installed using the provided mounting slots/holes.
• Nylon washers should be used on the top side to prevent the screw-head from making electrical contact with traces.
• The led modules may also be mounted using thermal transfer adhesive.
• LEDs should not be touched or contacted during installation to avoid damage
Wire Connector
• Wire connectors will accept 18 to 24 AWG solid or bonded stranded wire.
• To remove wire from connector, depress the indent on the top of the terminal with a wire release tool, and pull the wire.
Electrostatic Sensitive Product
• Installation of Universal Douglas LED Modules should be in an environment that incorporates ESD protective measures.
• Technicians should be grounded and avoid contact with the LEDs when servicing LED Luminaires.

Product family features:

Module efficacy: up to 185 lm/W
Available with luminous flux: 500 lm on 5.5''(140 mm)
Available with luminous flux: 1000 lm on 11''( 280 mm)
Available with luminous flux: 2,000 lm, 4,000 lm on 19.5'' (500 mm)
Available with luminous flux: 4,000lm, 8000 lm on 44''(1,120 mm)
Available with luminous flux: 4500 lm, 9000lm on 58'' (1,500 mm)
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
