DIY alibaba 26- 28V 5.5'' 11'' 19.5'' 44'' LED sign module lamp rigid aluminum light strip bar LED hard light bar home

Item No.:NKT-10

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-10	Product name:	led rigid light bar
Shape:	Linear	LED Types:	2835 SMD LED
Voltage:	Max 28.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1200mA
Dimension:	5.5'', 11'', 19.5'', 22'', 44''	PCB Material:	Aluminum, CEM-3
LED QTY:	40pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 34.4W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

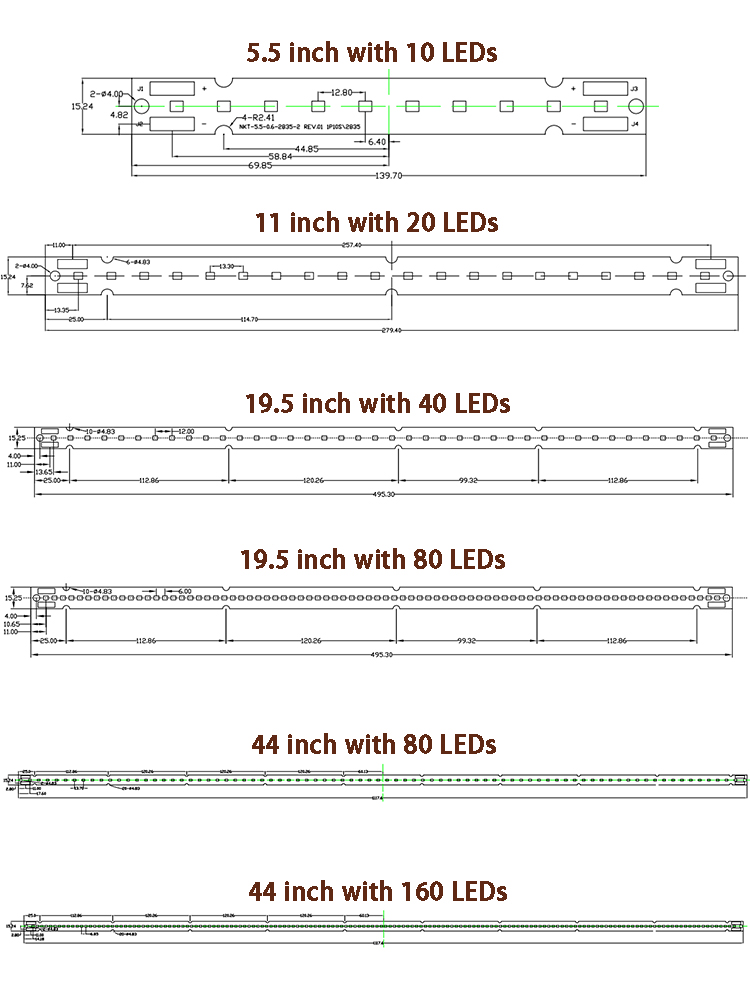

Product Dimension:
led aluminum light bar, led rigid light bar, led strip bar light

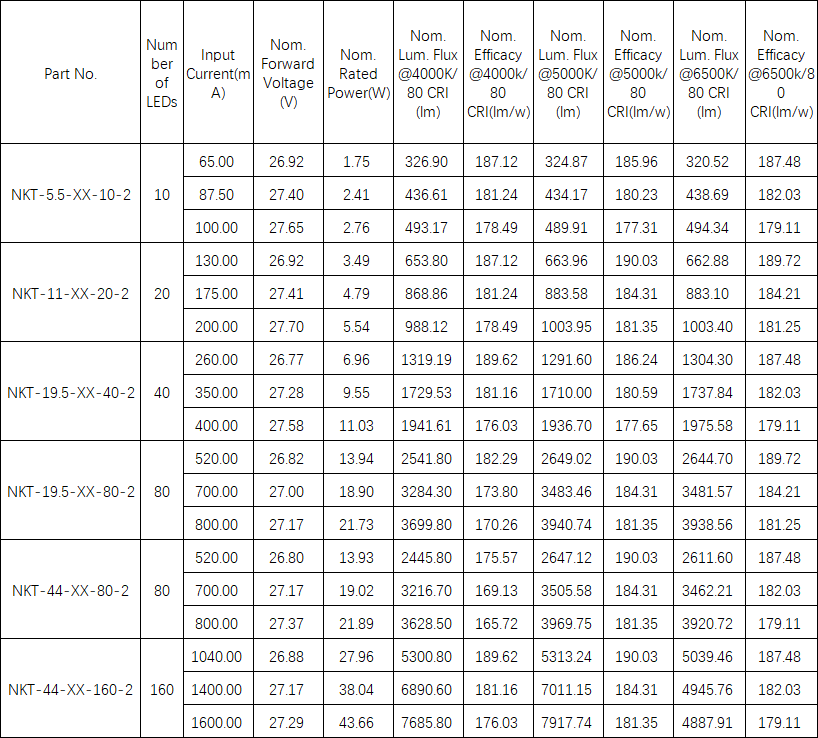

Technical Parameters:
rigid led light bar, led light strip, bar aluminum diy

Product packaging:

Product Applications:
alibaba led module, led module lamp, led sign module
