Dali zega zigbee dimmer electric light circular led module replacement led pcb for round ceiling light

Item No.:NKT-10-40-160

LED Module Benefits
Supplies adequate light with up to 90 CRI options
Extended life with a low operating temperaturePCB metal core
Provides even, consistent, lighting

Product Features
UL recognized components
LM80 Tested LED’s & 3 step MacAdam color binning
Low-profile WAGO push connectors
Highly reflective white solder mask
CRI: >80
Module efficacy: 185 lm/W
Beam angle: 120°

INQUIRY

PDF FOMAT

DESCRIPTION

Dali zega zigbee dimmer electric light circular led module replacement led pcb for round ceiling light

Product Specifications:

Nominal voltage	41-46V	Wattage	Max 92W
Current	Max 2000mA	Product thickness	1.6mm
Product size	Dia 254mm	Product weight	60g
Type of current	DC	Number of LEDS per module	160

Photometrical data:

Luminous efficacy	185lm/w	Consistent white light	< 3 SDCM
Color rendering index Ra	>80	Available olor temperature CCT	2700K, 3000K,3500K,4000K, 5000K, 6500K
Useful luminous flux (Φuse)	7905lm	Dimmable	According your driver

Other information:

PCB Material	Aluminum or CEM-3	LED Brands	Seoul or Samsung
Performance temp.	50 °C	Temperature range at storage	-30~85 °C
Temperature range in operation at Tc point	-20~75 °C	Ambient temperature range	-2~+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Certifications	CE, RoHS, ETL	Guarantee	5Years

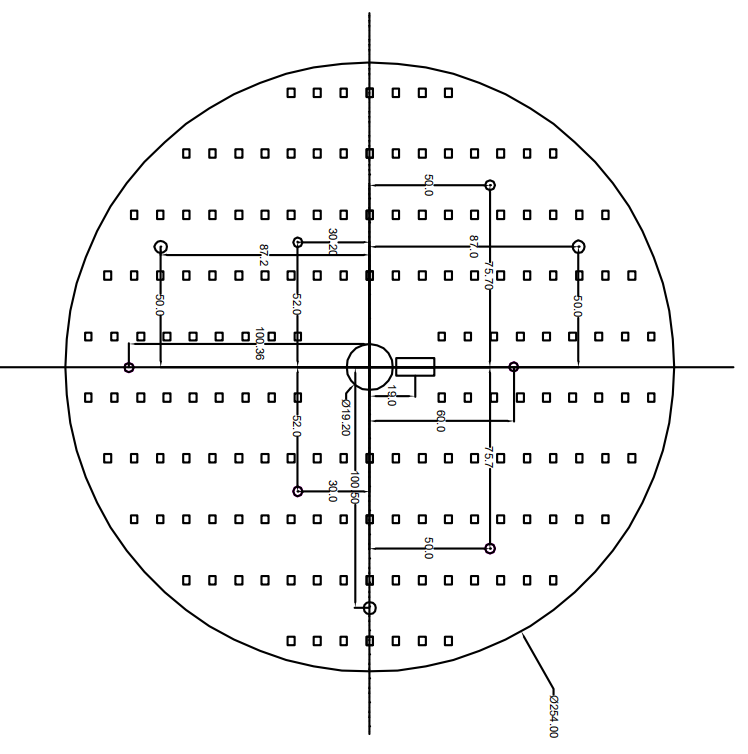

Product Dimmension:
led module replacement layout,dali dimmer module layout, circular led module layout

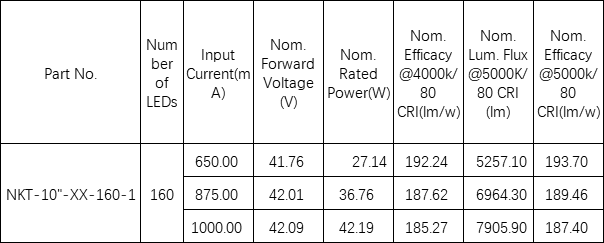

Technical Parameters:
led module replacement test,dali dimmer module test, circular led module test

Product Packaging:
led module replacement package,dali dimmer module package, circular led module package

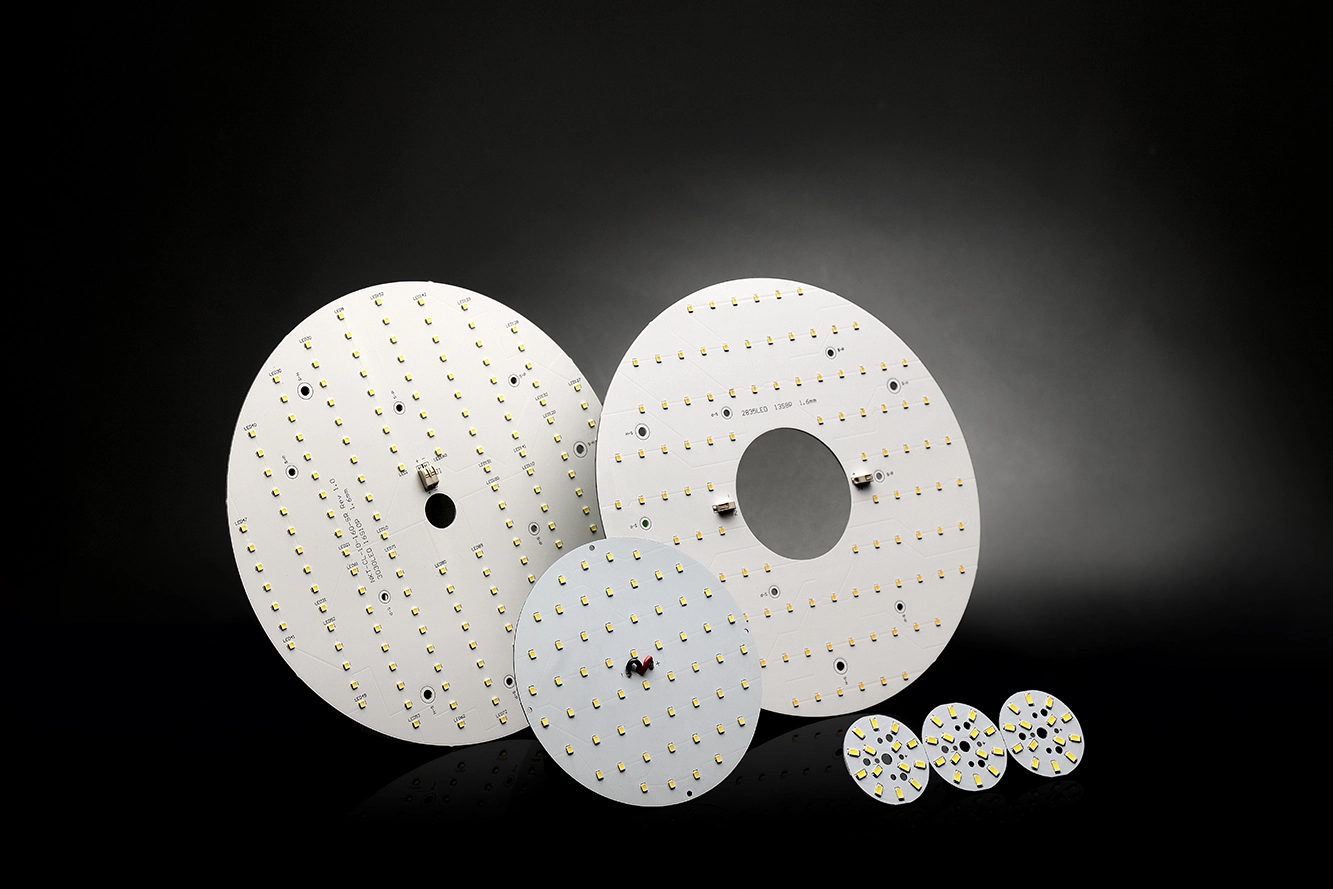

More product pictures:

led module replacement,dali dimmer module, circular led module

Product family features:

Module efficacy: up to 185 lm/W
Available with 6'' round led module
Available with 8'' round led pcb board
Available with 10'' round led pcb board
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
