Custom LED Ring PCB for Round High Bay LED Lighting

Custom led ring pcb 10 2835 DC led ceiling lamp module round pcb led module for Round High Bay LED Lighting

Item No.:NKT-10-XX-104-6

Custom led ring pcb 10 2835 DC led ceiling lamp module round pcb led module for Round High Bay LED Lighting

ROUND CUSTOMIZABLE LED MODULES

Available length:3'', 4'', 5'', 6’’, 8’’, 10’’ 12''
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
Applications: Hotel, Parking lot, Office, Home etc.
Poke in connectors
Service life: 60000 hours
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-10-XX-104-2	Product name:	Custom led ring PCB
Shape:	Round	LED Type:	Led ceiling lamp module
Voltage:	Max 40.3V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1600mA
Dimension:	Diameter is 10''	PCB Material:	Aluminum
LED QTY:	104pcs	Luminous Efficacy:	185lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 64.5W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Indoor high bay lighting

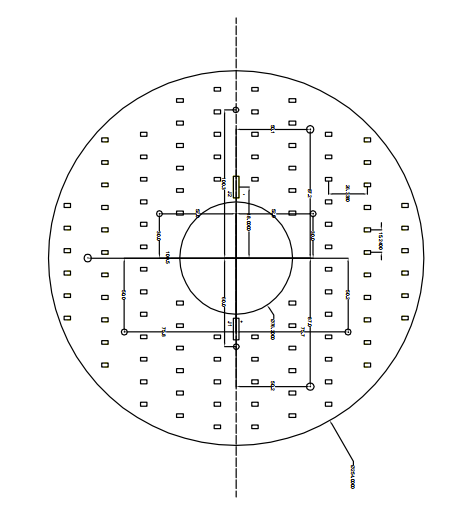

Product Dimension:
custom led ring pcb led ceiling lamp module

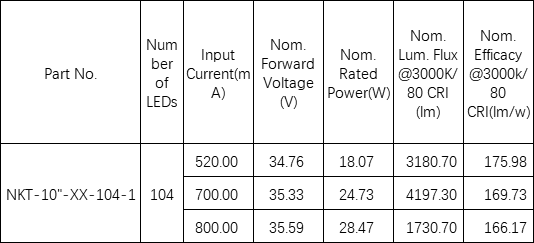

Technical Parameters:
ceiling light led module led module ceiling

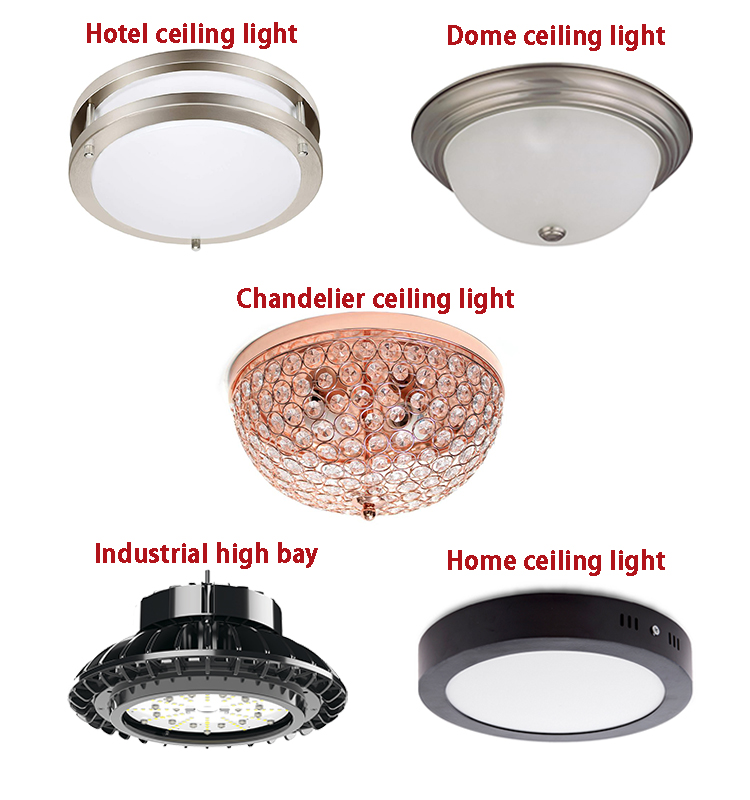

Product Applications:
driverless pcb board applications, round pcb board applications
