Home > 5.5'' LED Module
CRI 80 5.5'' LED Module with seoul L/B value L70B10 L70B20 L80B10 L80B20 L90B10 L90B20
Item No.:NKT-5-XX-14-3
CRI 80 5.5'' LED Module with seoul L/B value L70B10 L70B20 L80B10 L80B20 L90B10 L90B20
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
thing# NKT-5-XX-14-3 product name: L70, L80, L90 LED Modules
shape: linear LED type: Color rendering index 90
Voltage: 40 volts maximum color: white
LED chip:  Bridgelux  Input Current: 150mA max
aspect: 139.7*20*1.6mm Circuit board material: Aluminum, CEM-3
Number of LEDs: 14 Luminous efficacy: 175lm/W
Operating temperature: -40℃~50℃ input power: Maximum 6.19W
Color Temperature (CCT): 2700K、3000K、3500K、
4000K、5000K、6500K
Certification: CE、RoHS、ETL
Warranty Period (Years): 5 years application: indoor led lamps

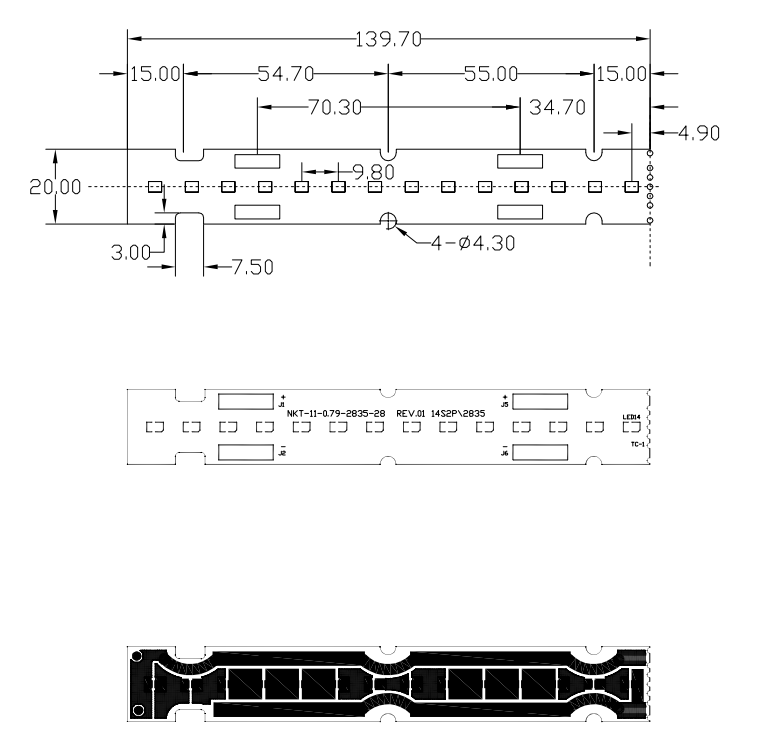

Product Size:

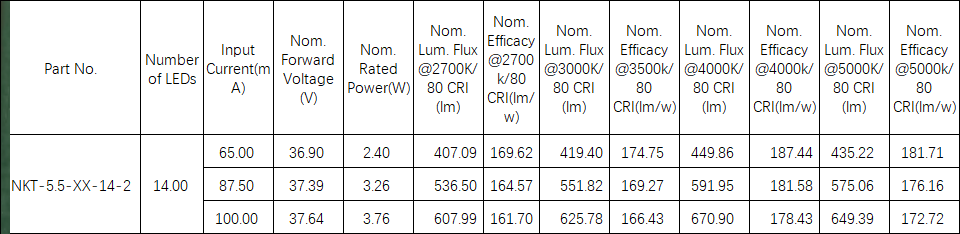

Technical Parameters:



Product Packaging:


Product Application:



TM21 calculator, which helps calculate L70, L90 data, do you want to get the TM21 calculator? please visit:
​​​​​​​https://www.nktledlighting.com/art/tm21-calculator-a00050a1.html
