CE RoHS ETL 44 Super Custom Samsung Indoor LED Light Module

CE RoHS ETL 44'' Super custom Samsung Indoor 2835 SMD led light module linear panel China Seoul led module light

Item No.:NKT-44-XX-78-2

CE RoHS ETL 44'' Super custom Samsung Indoor 2835 SMD led light module linear panel China Seoul led module light

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-44-XX-84-2	Product name:	led module light
Shape:	Linear	LED Types:	2835 LED Module
Voltage:	Max 37V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 900mA
Dimension:	1117.620.641.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	78pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 34.5W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

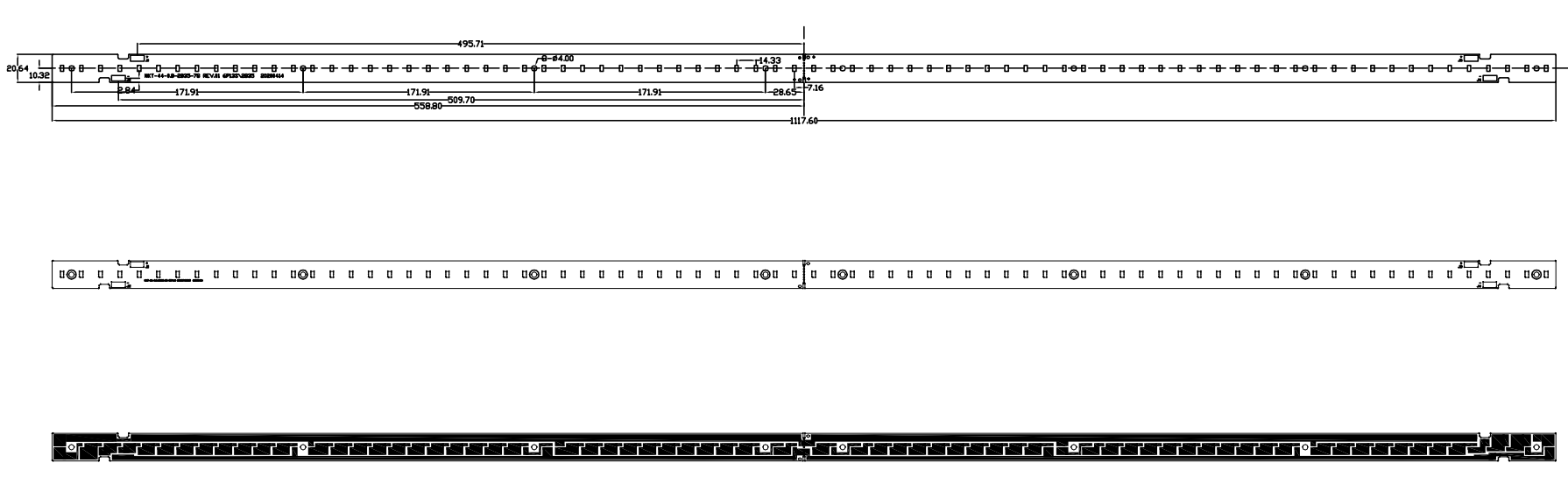

Product Dimension:
led module light, 2835 led module,led light module

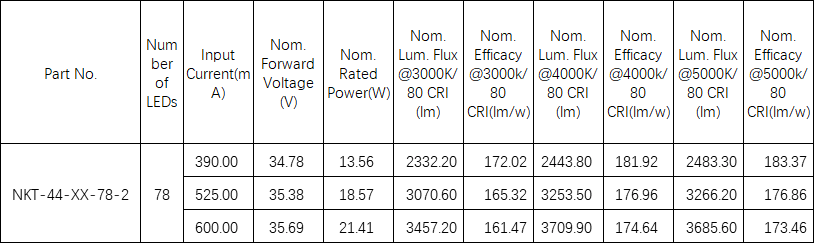

Technical Parameters:
indoor led module, led light module, linear led module

Product packaging:

Product Applications:
2835 led module applications, 94v 0 led strip applications, led strip 94v 0 applications
