560x20mm 37-40v custom pcb led lighting modules samsung led modulos for panel light
Item No.:NKT-22-XX-84-2
560x20mm 37-40v custom pcb led lighting modules samsung led modulos for panel light
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-22-XX-84-2 Product name: LED Modulos
Shape: Linear LED Type: Custom led pcb
Voltage: Max 40v Color: White
LED Chip: Seoul & Samsung Input Current: Max 900mA
Dimension: 558.82*20*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 84pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 37.17W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

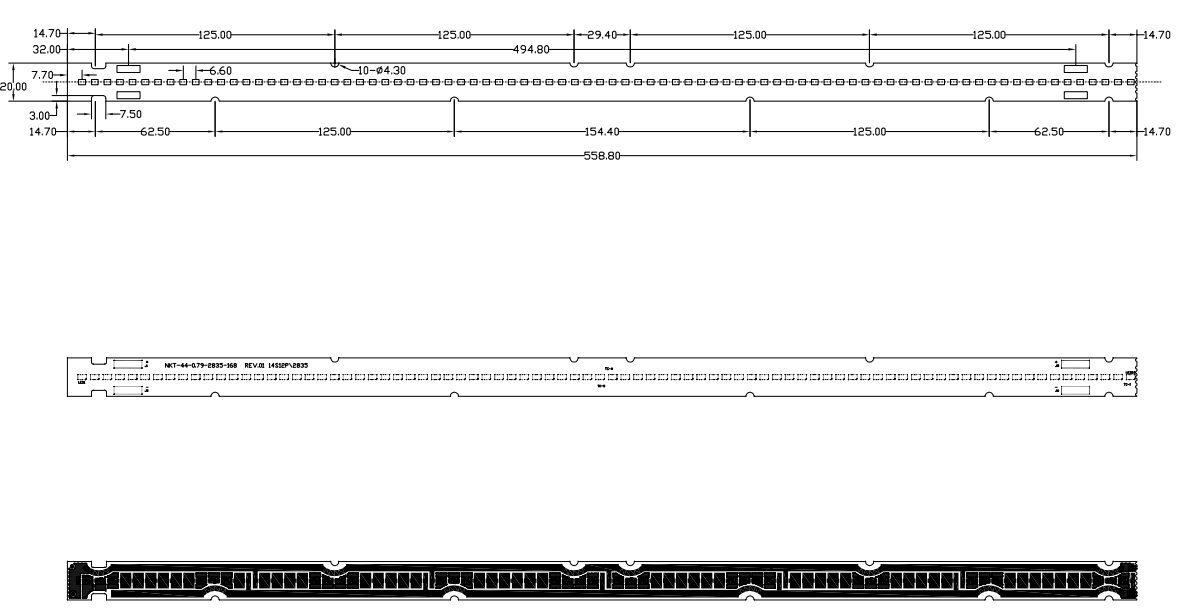

Product Dimension:
led modulos, modulos led samsung, led lighting moduls,

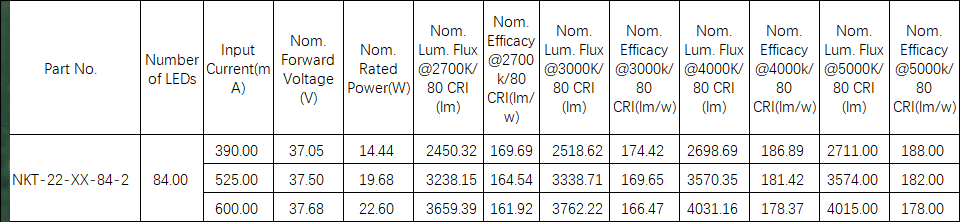

Technical Parameters:
custom led pcb


Product packaging:
modulos led 5050, modulos led samsung

Product Applications:

led lighting modules, custom led pcb
