Indoor ceiling panel board smd module DC led module for architectural conical recessed lighting

Item No.:NKT-19.5-XX-84-3

37-40v constaIndoor ceiling panel board smd module DC lent current led light pcb circuit board pcb_led star board pcb smd led chip pcb diy led module

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-19.5-XX-84-2	Product name:	Indoor led light strip
Shape:	Linear	LED Type:	AC led module
Voltage:	Max 40v	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 900mA
Dimension:	495.3201.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	84pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 37.17W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

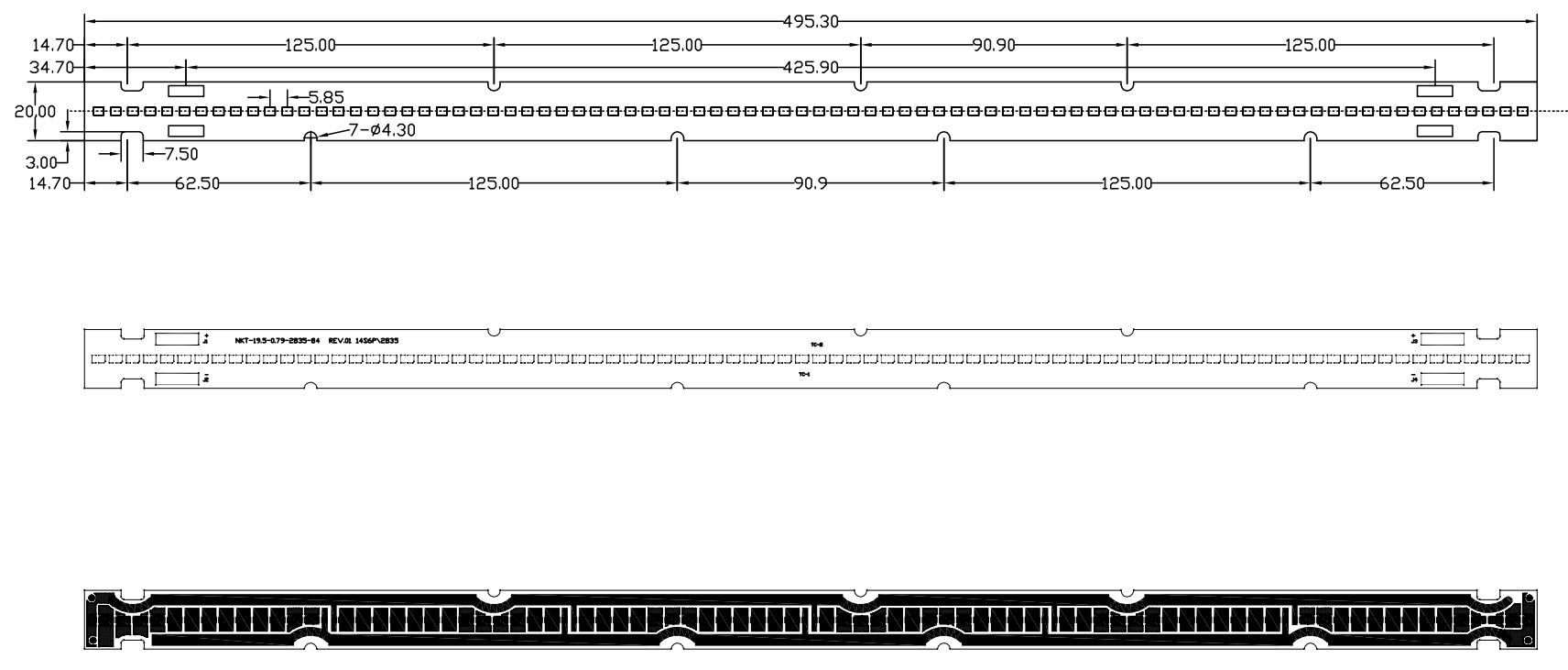

Product Dimension:
indoor led light strip, ac led module, led ceiling panel board

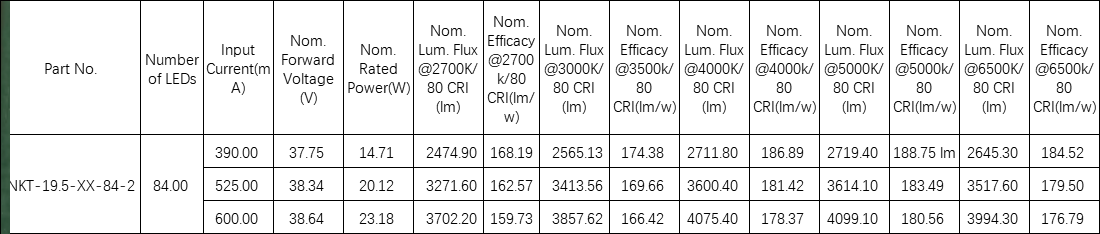

Technical Parameters:
ce rohs smd 3 led module, led ceiling module

Product packaging:

Product Applications:
led ceiling panel board, ce rohs smd 3 led module, led ceiling module
