DESCRIPTION
Product Specifications:
Nominal voltage
|
26.82 |
C |
6.1 kWh/1000h |
Nominal current
|
520mA |
On-mode power |
13.94W |
| Product size |
495.3*15.5mm |
Product weight |
20g |
Type of current
|
DC |
Number of LEDS per module |
80 |
Photometrical data:
Luminous efficacy
|
187lm/w |
Colour consistency (McAdam ellipses)
|
3 |
Color rendering index Ra
|
>80 |
Correlated color temperature CCT
|
2700-6500 K |
Useful luminous flux (Φuse)
|
2500lm |
|
|
Other information:
Warm-up time (60 %)
|
< 2.00 s |
Starting time
|
< 0.1 s |
Performance temp.
|
50 °C |
Temperature range at storage
|
-30…85 °C |
Temperature range in operation at Tc point
|
-20…75 °C |
Ambient temperature range
|
-20…+75 °C |
Maximum temperature at tc test point
|
75 °C |
Number of switching cycles
|
100000 |
Lumen maintenance factor LMF
|
96 |
L70B50 lifetime
|
100000 h |

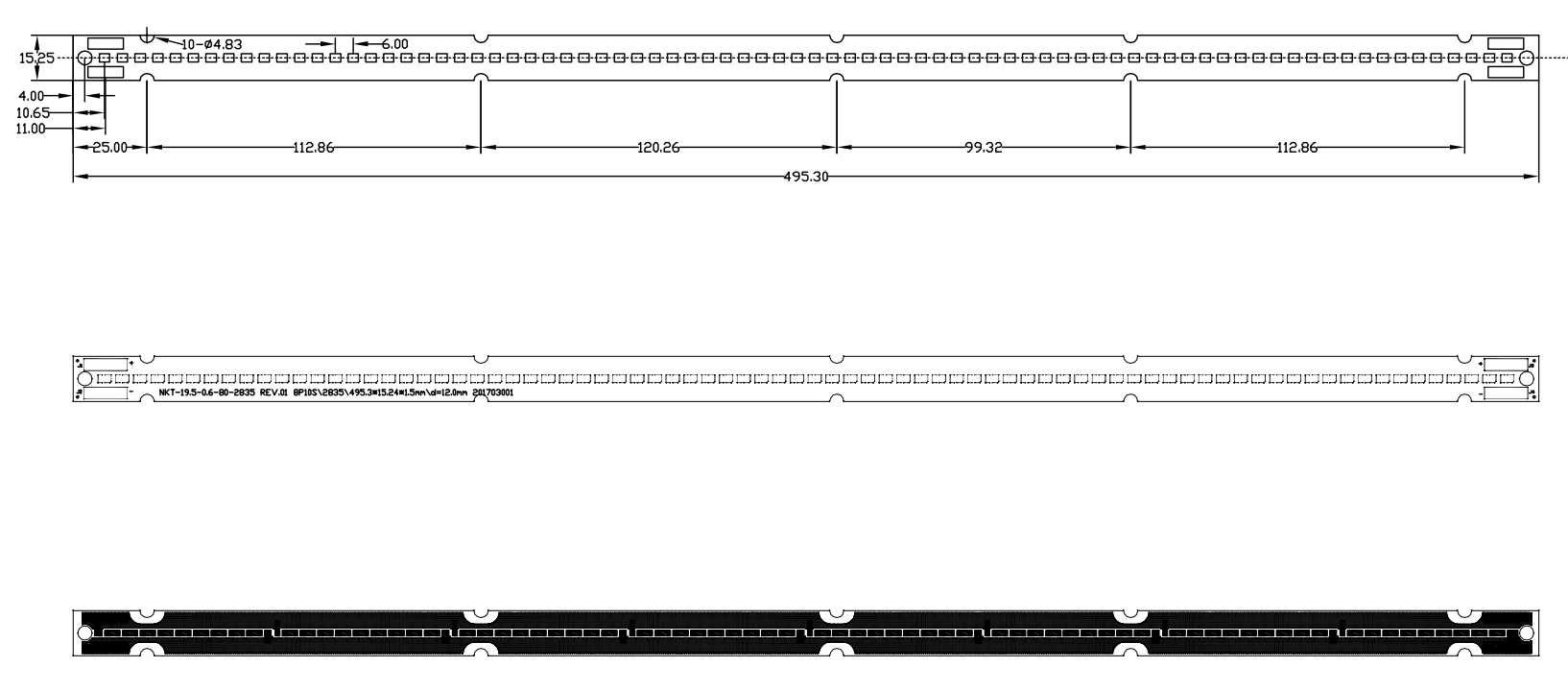

Product Demension:

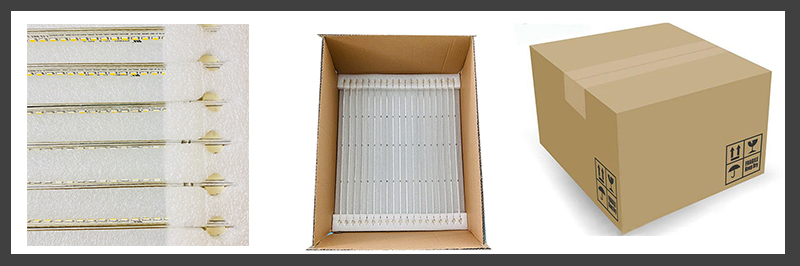

Product Packaging:
The impact of light on human health and happiness has long been studied. But what about times when the
color of the light needs to be adjusted – where a single fixed color or color temperature does not satisfy the need?
That’s where tunable lighting comes in.
The uses for tunable lighting are wide ranging and varied, and NKT LED Lighting has solutions From linear
to downlights, from curved to troffers, NKT LED Lighting has the led module to address both your tunable
and design needs. With custom design and manufacturing capabilities even the most demanding applications
are generally within our reach.
Product family features:
- Available with luminous flux: 500 lm on 5.5''(140 mm)
- Available with luminous flux: 1000 lm on 11''( 280 mm)
- Available with luminous flux: 2,000 lm, 4,000 lm on 19.5'' (500 mm)
- Available with luminous flux: 4,000lm, 8000 lm on 44''(1,120 mm)
- Available with luminous flux: 4500 lm, 9000lm on 58'' (1,500 mm)
- Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
- High initial color consistency: ≤ 3 SDCM
- Average lifetime (L80 B50): > 70,000 h (temperature at Tc = 50 °C)
- CE marked, ENEC certified; UL listed
