3000K 4000K 5000K selectable CCT round LED pcb board for downlight

Item No.:NKT-1310

Tunable white 3000K 4000K 5000K color selectable CCT round LED pcb board for downlight

A color selectable led pcb board allows to select the right color temperature, to meet different requirements, typical options usually are warm white(3000K), nature white(4000K), cool white(5000K)

Product Features
UL recognized components
LM80 Tested LED’s & 3 step MacAdam color binning
Low-profile WAGO push connectors
Highly reflective white solder mask
CRI: >80
Module efficacy: 185 lm/W
Beam angle: 120°

INQUIRY

PDF FOMAT

DESCRIPTION

3000K 4000K 5000K selectable CCT round LED pcb board for downlight

Product Specifications:

Nominal voltage	32-36V	Wattage	Max 64.8W
Current	Max 1800mA	Product thickness	1.6mm
Product size	Dia 95mm	Product weight	50g
Type of current	DC	Number of LEDS per module	144

Photometrical data:

Luminous efficacy	177lm/w	Consistent white light	< 3 SDCM
Color rendering index Ra	>80	Tunable color temperature CCT	3000K, 4000K, 5000K
Useful luminous flux (Φuse)	4183lm	Dimmable	According your driver

Other information:

PCB Material	Aluminum or CEM-3	LED Brands	Seoul or Samsung
Performance temp.	50 °C	Temperature range at storage	-30~85 °C
Temperature range in operation at Tc point	-20~75 °C	Ambient temperature range	-2~+75 °C
Maximum temperature at tc test point	75 °C	Number of switching cycles	100000
Certifications	CE, RoHS, ETL	Guarantee	5Years

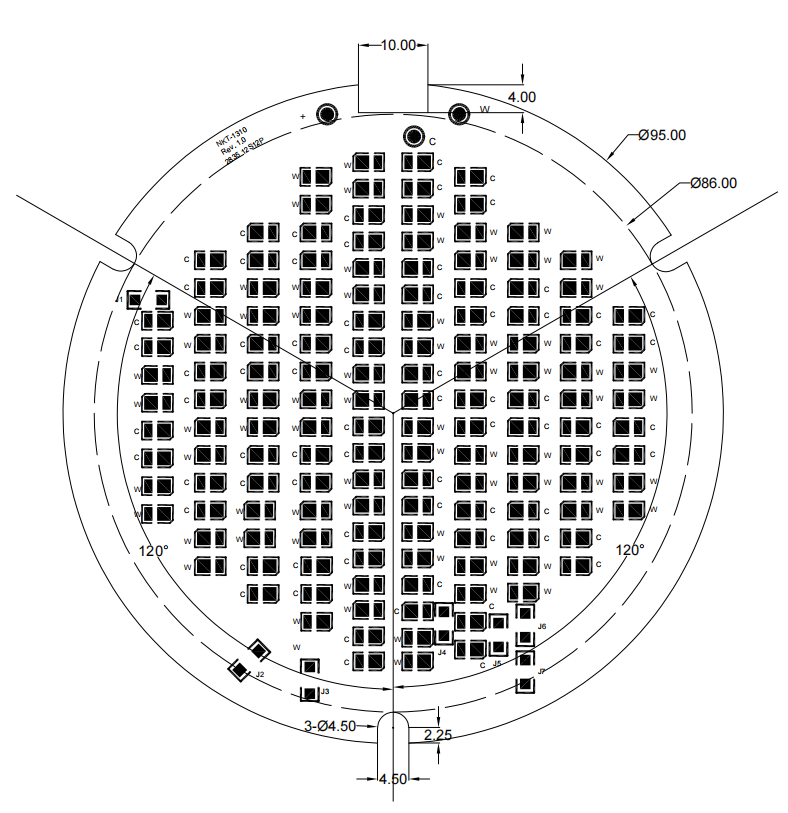

Product Dimmension:

Product Packaging:
led module replacement package,dali dimmer module package, circular led module package

More product pictures:

led module replacement,dali dimmer module, circular led module

Product family features:

Module efficacy: up to 185 lm/W
Available with 6'' round led module
Available with 8'' round led pcb board
Available with 10'' round led pcb board
Available with color temperature: 2700K, 3,000 K, 4,000 K or 6,500 K
High initial color consistency: ≤ 3 SDCM
Average lifetime (L80 B50): > 70,000 h (temperature at T_c = 50 °C)
CE marked, ENEC certified; UL listed
