ETL CE Rohs 19.5 LED Module Board for LED Grow Light

ETL CE Rohs 19.5'' 2835 China led module board string lighting LED lamp module LED PCB board for LED grow light

Item No.:NKT-19.5-XX-40-2

ETL CE Rohs 19.5'' 2835 China led module board string lighting LED lamp module LED PCB board for LED grow light

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-19.5-XX-40-2	Product name:	LED lamp module
Shape:	Linear	LED Types:	2835 SMD LED
Voltage:	Max 28.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 600mA
Dimension:	495.315.241.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	40pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 17.7W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

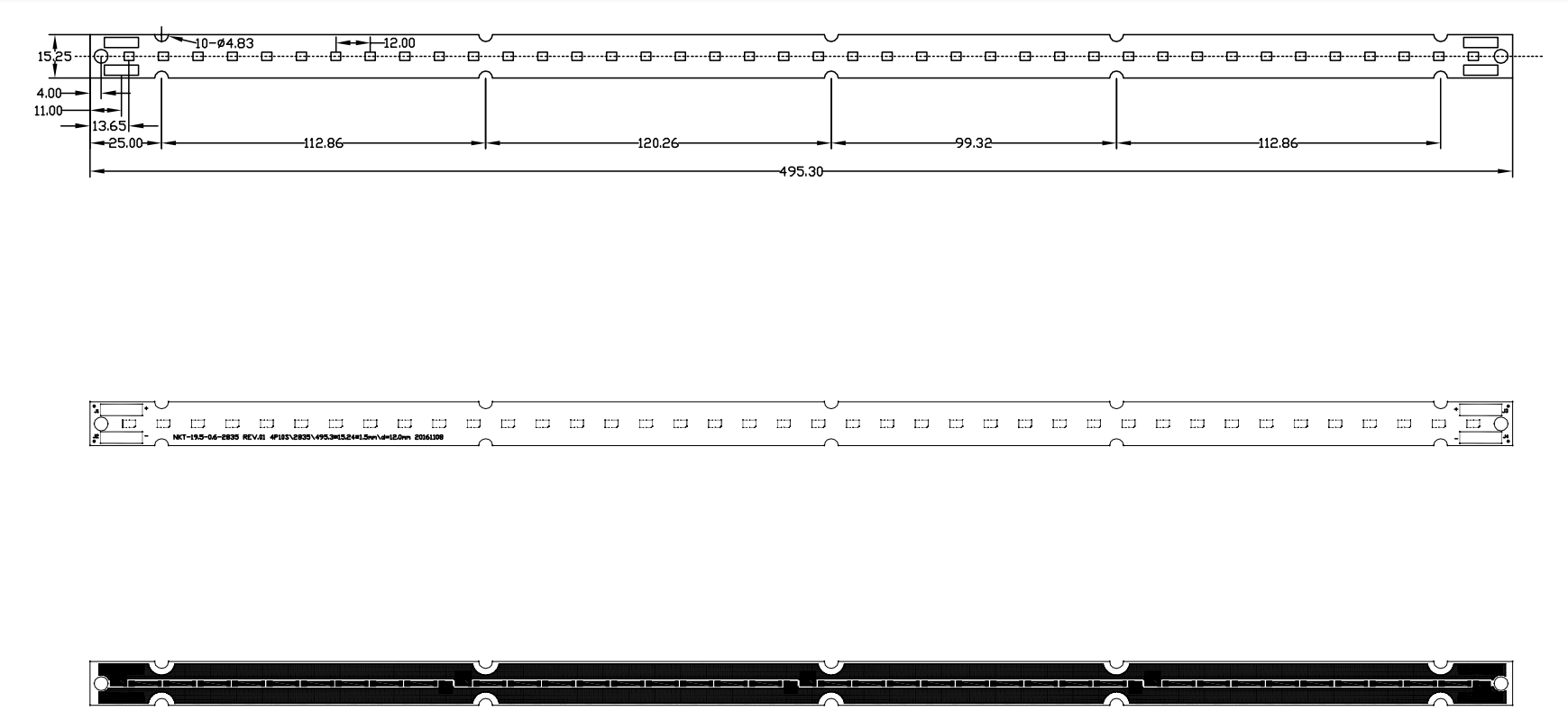

Product Dimension:
Led lamp module, led module string, china module led

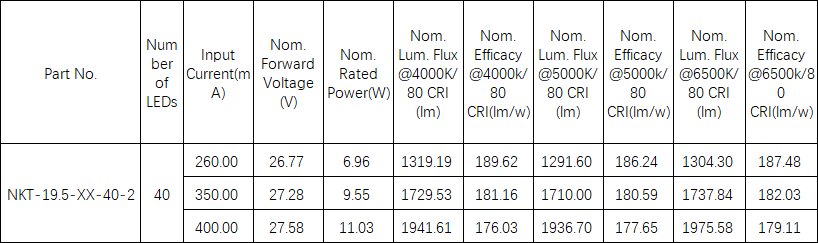

Technical Parameters:
china module led, LED module board. led pcb board

Product packaging:

Product Applications:
2835 led module applications, 94v 0 led strip applications, led strip 94v 0 applications
