Custom design assembly manufacturer surface mount SMD 2835 linear module aluminum circuit board pcb led pcba for strip panel bulb light
Item No.:NKT-44-XX-168
Custom design assembly manufacturer surface mount SMD 2835 linear module aluminum circuit board pcb led pcba for strip panel bulb light
Product Features:
- Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
- Can be snapped in the middle, which helps save stock and shipping fees.
- Poke in connectors for easy assembly
- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K are available
- Mouse bite design for easy assembly
- High reflective PCB paint improves high efficacy
- Service life: 100,000 hours
- ETL, DLC, CE, RoHs approved
- Meet New EU ERP C or D class standard
- 5 years warranty
- MOQ 200pcs
DESCRIPTION
Product Specifications:

Nominal voltage

37-42V Wattage Max 74.34W

Current

Max 1800mA PCB thickness 1.6mm
Product size 1117.6*20mm Product weight 50g

Type of current

DC Number of LEDs per module 168

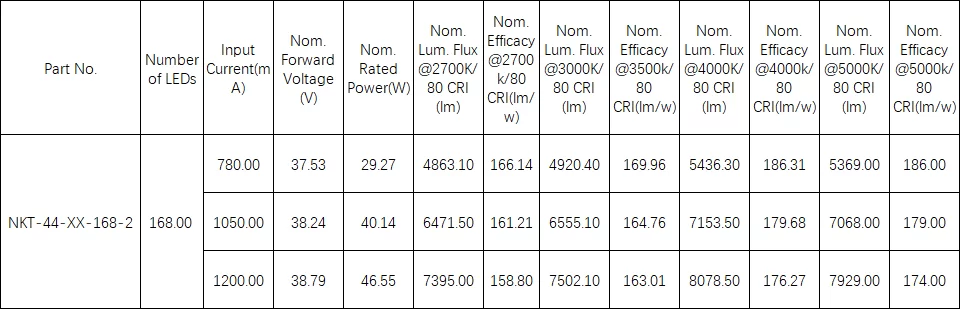

Photometrical Data:

Luminous efficacy

186lm/w

Consistent white light

< 3 SDCM

Color rendering index Ra

>80

Available olor temperature CCT

2700K, 3000K,3500K,4000K, 5000K, 6500K

Useful luminous flux (Φuse)

6000lm Dimmable  Compatible with dimmable drivers

Other Information:
PCB Material Aluminum or CEM-3

LED Brands

Seoul or Samsung

Performance temp.

50 °C

Temperature range at storage

-30~85 °C

Temperature range in operation at Tc point

-20~75 °C

Ambient temperature range

-2~+75 °C

Maximum temperature at tc test point

75 °C

Number of switching cycles

100,000

Certifications

CE, RoHS, ETL

Guarantee

5 years

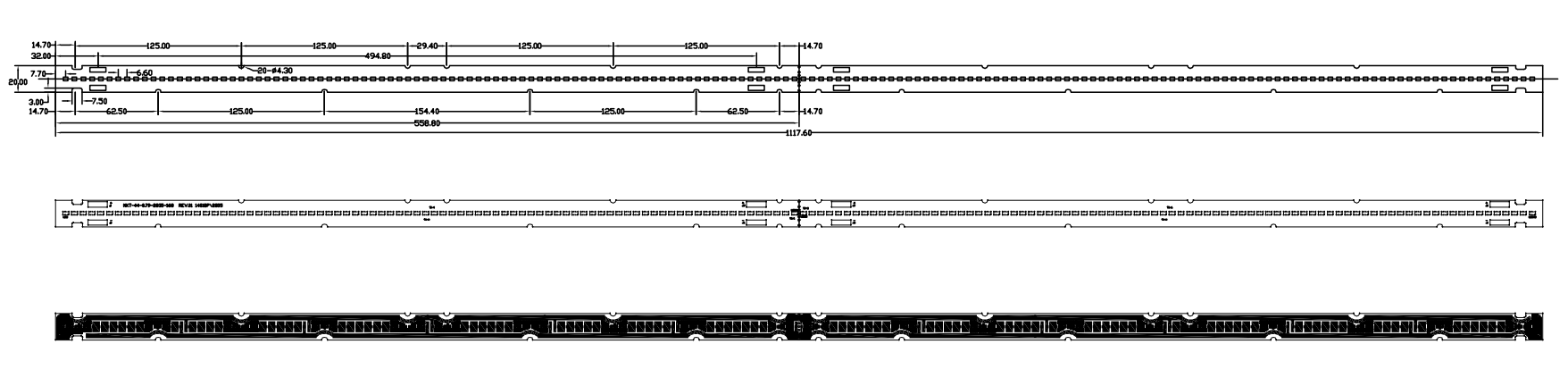

Product Demension:
PCB LED size, LED PCBA dimension, LED circuit board size

Technical Parameters:

PCB LED parameter, LED PCBA parameter, LED circuit board parameter

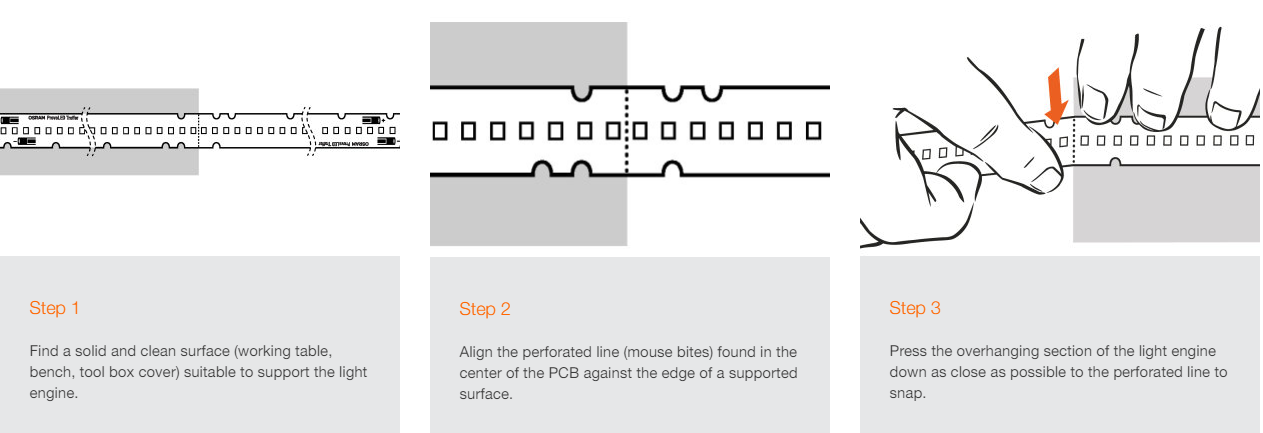

Snapping Instruction:
The led pcba can be snapped mide-way to fit a application fixtures, please use the best practices shown
below when handling the led PCBAS:

snap off led pcb, how to snap a pcb, how to cut off the led pcb

Product Packaging:
PCB LED package, LED PCBA package, LED circuit board package

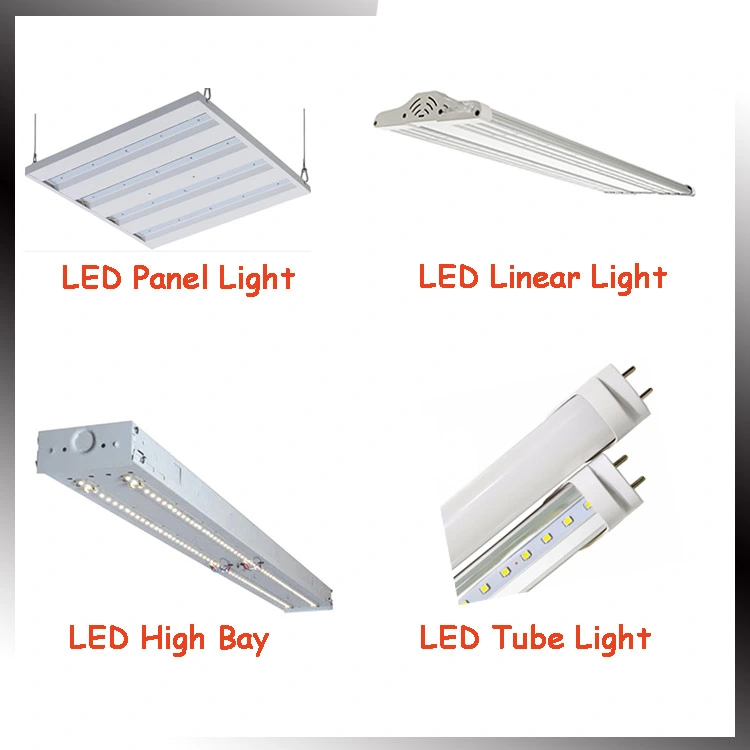

Applications:

PCB LED applications, LED PCBA applications, LED circuit board applications

Installation & Assembly Guidelines:

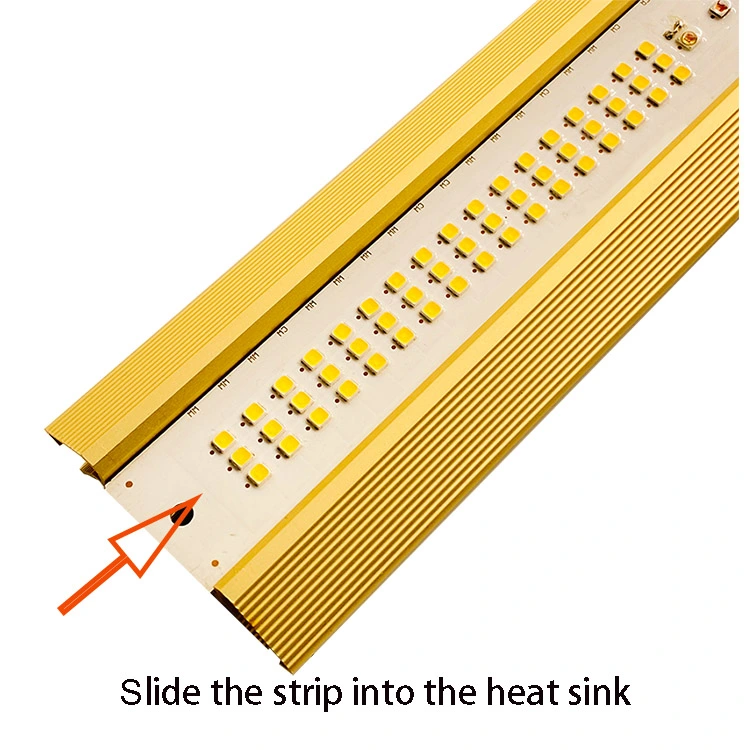

---Mounting:
• Led modules may be installed using the provided mounting slots/holes.
• Nylon washers should be used on the top side to prevent the screw-head from making electrical contact with  traces.
• The led modules may also be mounted using thermal transfer adhesive.
• LEDs should not be touched or contacted during installation to avoid damage


---Wiring:
• Wire connectors accept 18 to 24 AWG solid or bonded stranded wire.
• To remove wires from connectors, depress the indent on the top of the terminal with a wire release tool, and  pull the wire.

---Electrostatic Sensitive Product:
• Installation of LED Modules should be in an environment that incorporates ESD protective measures.
• Technicians should be grounded and avoid contact with the LEDs when servicing LED Luminaires.

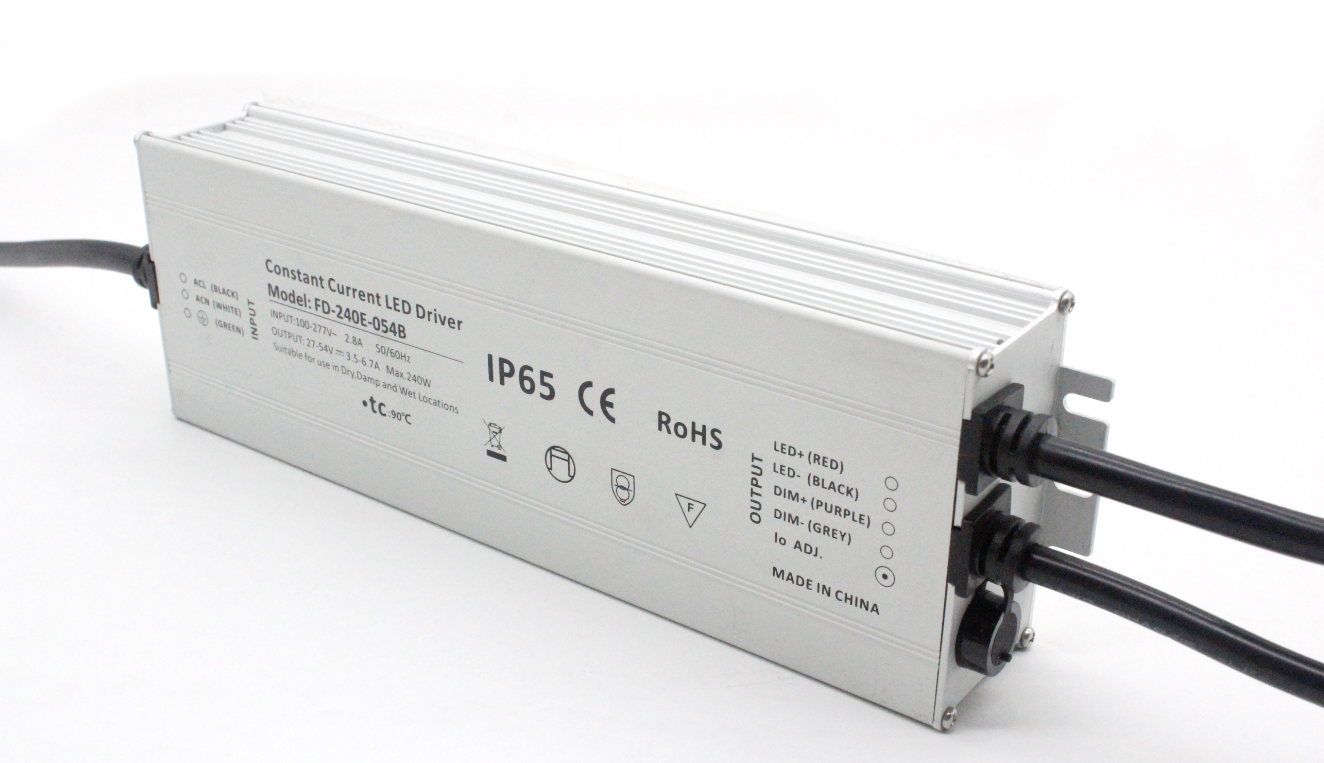

LED Drivers and Housings Recommendations:
NKT's family LED Modules work with most of LED constant current SELV driver brands in the market, like Tridonic, Osram, Meanwell, Inventronics, etc. If you have no LED driver solutions, we can help make recommendations to introduce our reliable partners to you.


If you need some housings to build your LED Fixtures, we can definitely introduce some trustworthy vendors to you as well. During COVID period, we know it is a hassle to screen suppliers by visiting them on the site, so we offer one stop service which makes you feel hassle free.
led driver, led driver supplier, led driver manufacturer           PCB LED heat sink, LED PCBA, heatsink, LED circuit board heat sink





Product families:


round led module, round led pcba, round led pcb board          linear led module, linear led board, linear led pcba
        Round DC LED PCBAS                                     Linear LED Modules

tunable led module, tunable led pcb, tunable led pcb board          led module with lens, led pcba with lens, circuit board with lens

Tunable color LED PCB                                           LED Circuit Board with lens


rgb led module, rgbw led module, rgbw led pcba       220v led module, 110v led module, 230v led module
           RGB/RGBW LED modules                          AC LED Modules


What can we do for you? Email us and let me know what you need!
