CE RoHS ETL 28V SMD LED Modules for Linear Fixtures

CE RoHS ETL 28V Super bright SMD led modules with Seoul 2835 LED or Samsung LED led module korea for linear fixtures

Item No.:NKT-44-XX-80-2

CE RoHS ETL 28V Super bright SMD led modules with Seoul 2835 LED or Samsung LED led module korea for linear fixtures

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-44-XX-80-2	Product name:	LED module
Shape:	Linear	LED Types:	2835 SMD LED
Voltage:	Max 28.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 1200mA
Dimension:	111715.241.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	80pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 35.4W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

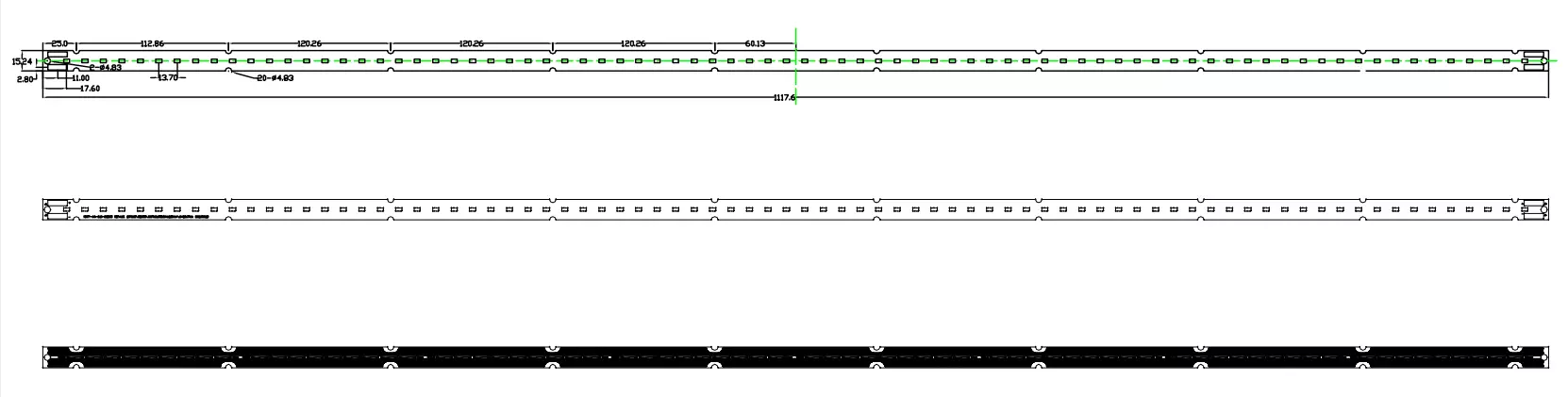

Product Dimension:
led module,smd_led_module, smd 2835 led module,

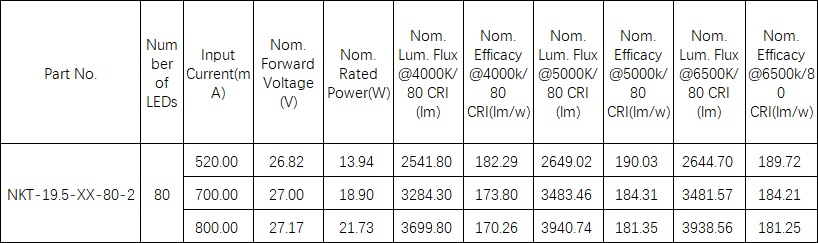

Technical Parameters:
led module 5 year warranty, led module, smd_led_module

Product packaging:

Product Applications:
2835 led module applications, 94v 0 led strip applications, led strip 94v 0 applications
