37-42V 48W 44'' samsung pcb flat panel module board rigid led strip repair for led panel light
Item No.:NKT-44-XX-156-2
37-42V 48W 44'' samsung pcb flat panel module board rigid led strip repair for led panel light
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-44-XX-168-2 Product name: Led strip for led panel light
Shape: Linear LED Types:  panel light module
Voltage: Max 37V Color: White
LED Chip: Seoul & Samsung Input Current: Max 1800mA
Dimension: 1117.6*20.64*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 168pcs Luminous Efficacy: 195lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 69.03W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

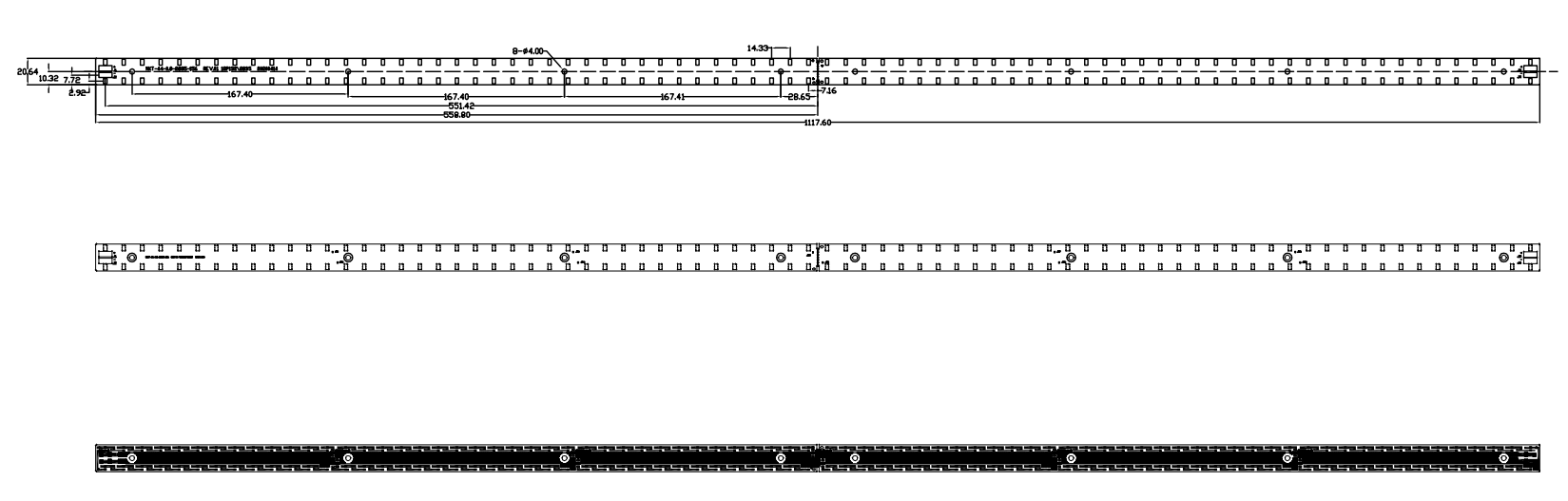

Product Dimension:
led strip for led panel light, panel light led strip, panel light module

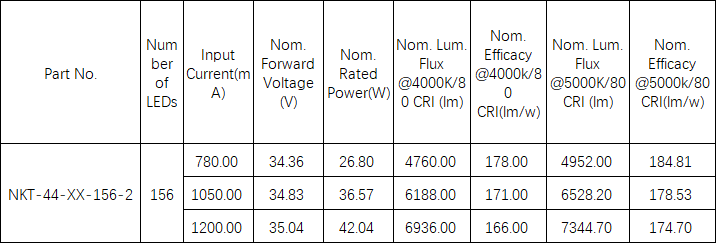

Technical Parameters:
37-34V 48W 44'' samsung pcb


Product packaging:
flat panel module board

Product Applications:

rigid led strip repair for led panel light
