22'' 32-35V 94V0 circuit board China super  2835 linear indoor led module light custom led module
Item No.:NKT-22-XX-72-2
22'' 32-35V 94V0 circuit board China super 2835 linear indoor led module light custom led module
Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty
DESCRIPTION
Product Specifications:
Item# NKT-22-XX-72-2 Product name: LED Panel module
Shape: Linear LED Types: 2835 linear module
Voltage: Max 34.5V Color: White
LED Chip: Seoul & Samsung Input Current: Max 900mA
Dimension: 559.2*20*1.6mm PCB Material: Aluminum, CEM-3
LED QTY: 72pcs Luminous Efficacy: 186.69lm/W
Operating temperature: -40℃~50℃ Input Wattage: Max 63.72W
Color Temperature(CCT): 2700K, 3000K, 3500K,
4000K, 5000K, 6500K
Certification: CE, RoHS, ETL
Warranty(Year): 5 Years Applications: Linear Fixtures

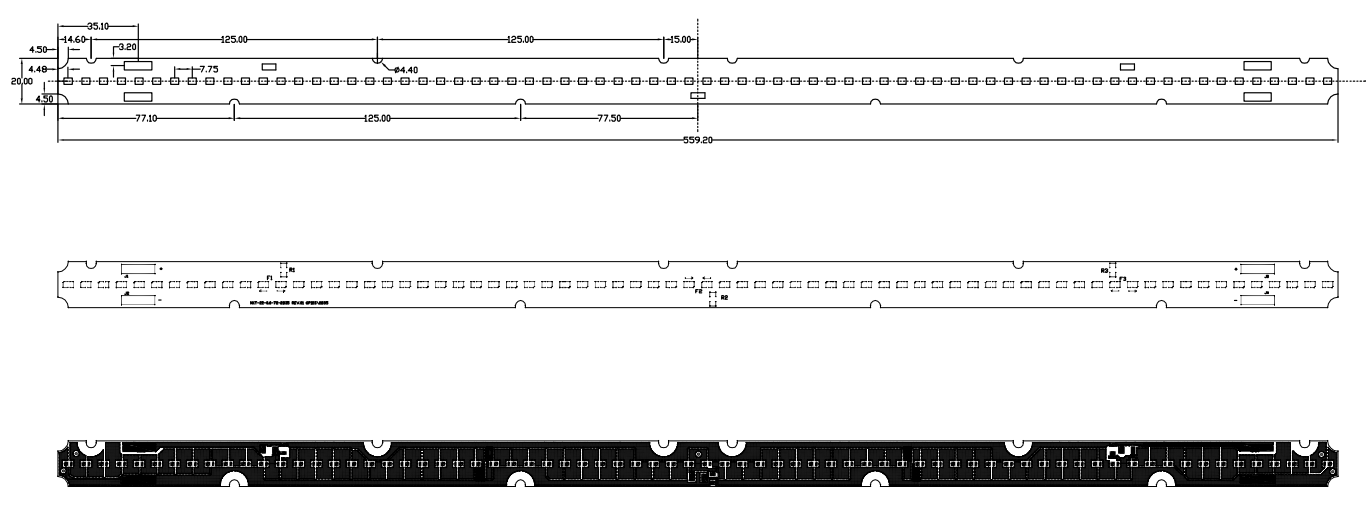

Product Dimension:
indoor led module, led light module, linear led module

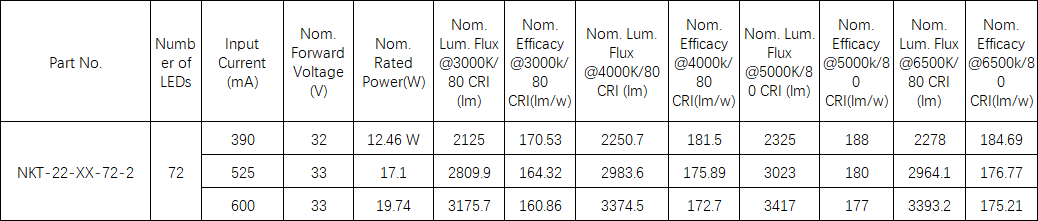

Technical Parameters:
