19.5 Constant Current Source LED Module with Lenses

19.5'' constant current source circuit modul Linear led lens module with collimator dome spot diffused lenses

Item No.:NKT-19-40-24-L

19.5'' constant current source circuit modul Linear led lens module with collimator dome spot diffused lenses

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy up to 200lm/W met EU Energy standard Class D and C
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-19-40-24	Product name:	led module with lenses
Shape:	Linear	LED Types:	2835 SMD LED modul
Voltage:	Max 34.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 300mA
Dimension:	1118.4201.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	24pcs	Luminous Efficacy:	190lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 10.35W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

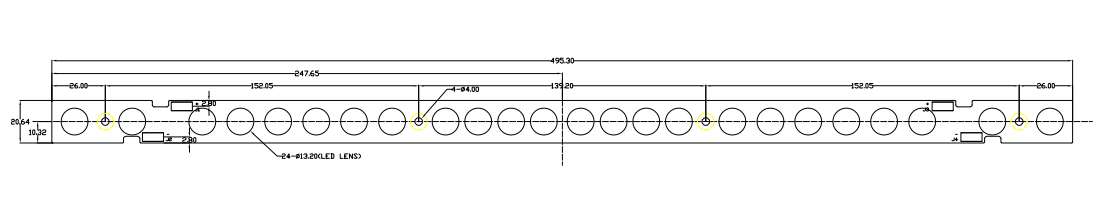

Product Dimension:
Linear led lens module PCB layout

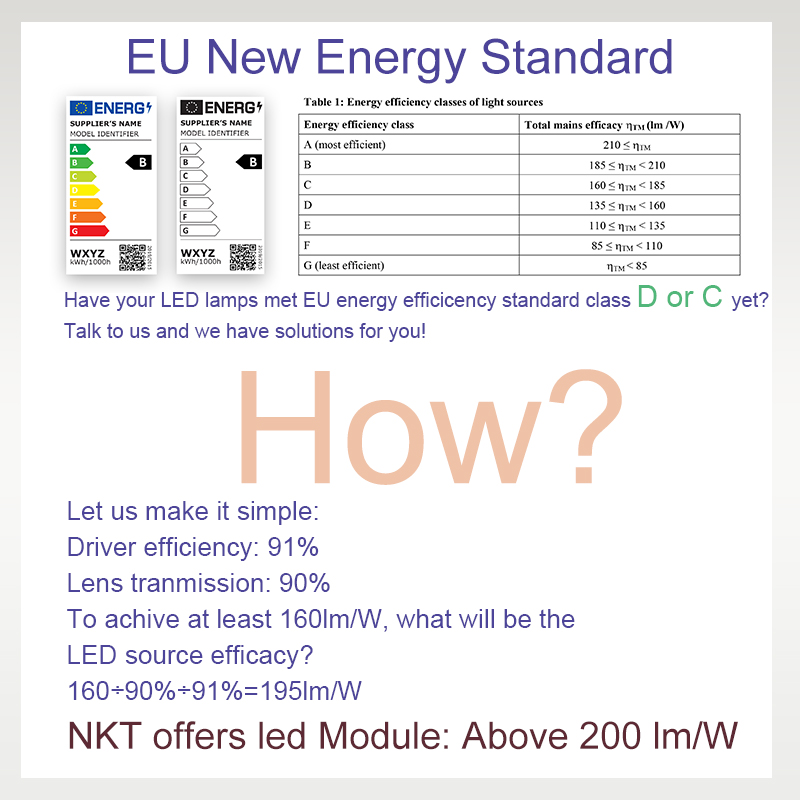

EU New Energy Standard:
Linear led lens module meeting ERP directive

Product packaging:

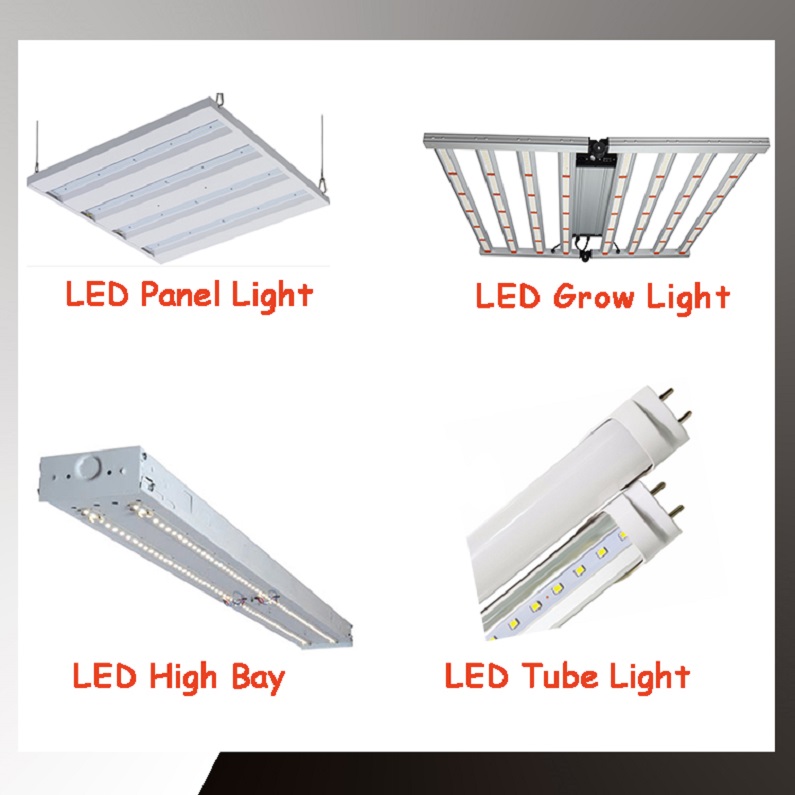

Product Applications:
Linear led lens module application
