11'' osram led module 2835 smd_led_pcb_board printed circuit board aluminum led bulb circuit board

Item No.:NKT-11-XX-20-2

Available length: 5.5’’, 11’’, 19.5’’, 22’’, 44, 47.5’’, 58’’
High efficacy LED modules
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
CRI > 80 and > 90
High lumen options for :
-High/low bay applications
-Industrial applications
Poke in connectors
Service life: 60000 hours
ETL, DLC, CE, RoHS approved
5 years warranty

INQUIRY

PDF FOMAT

DESCRIPTION

Product Specifications:

Item#	NKT-11-XX-20-2	Product name:	led bulb circuit board
Shape:	Linear	LED Types:	2835 SMD LED
Voltage:	Max 28.5V	Color:	White
LED Chip:	Seoul & Samsung	Input Current:	Max 300mA
Dimension:	279.415.241.6mm	PCB Material:	Aluminum, CEM-3
LED QTY:	20pcs	Luminous Efficacy:	195lm/W
Operating temperature：	-40℃~50℃	Input Wattage:	Max 8.85W
Color Temperature(CCT):	2700K, 3000K, 3500K, 4000K, 5000K, 6500K	Certification:	CE, RoHS, ETL
Warranty(Year):	5 Years	Applications:	Linear Fixtures

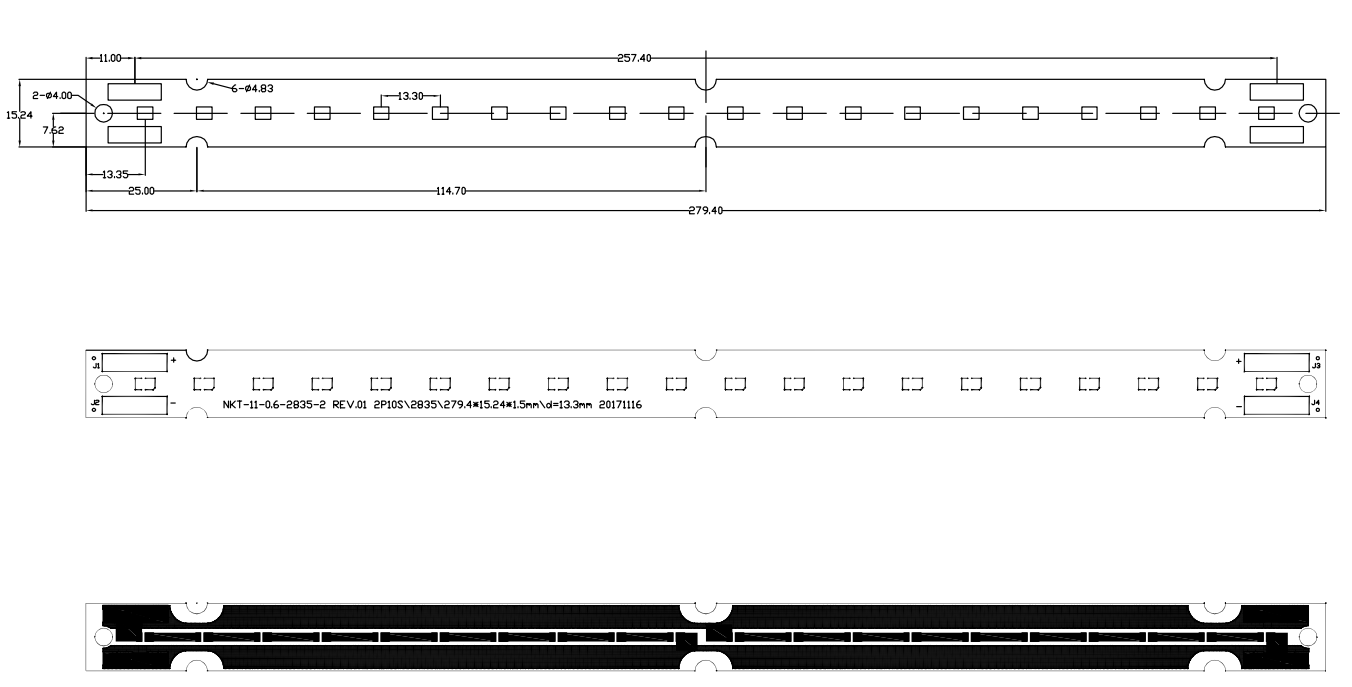

Product Dimension:
led bulb circuit board, led bulb board, led bulb pcb board

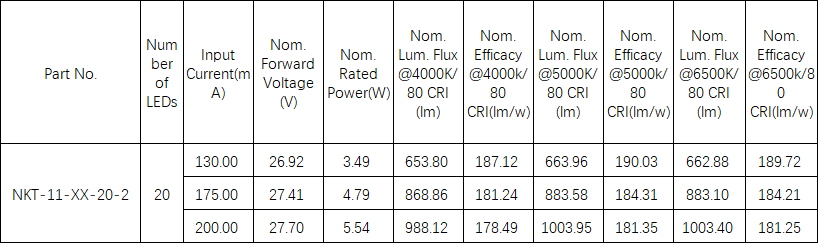

Technical Parameters:
led driver circuit board, printed circuit board for led

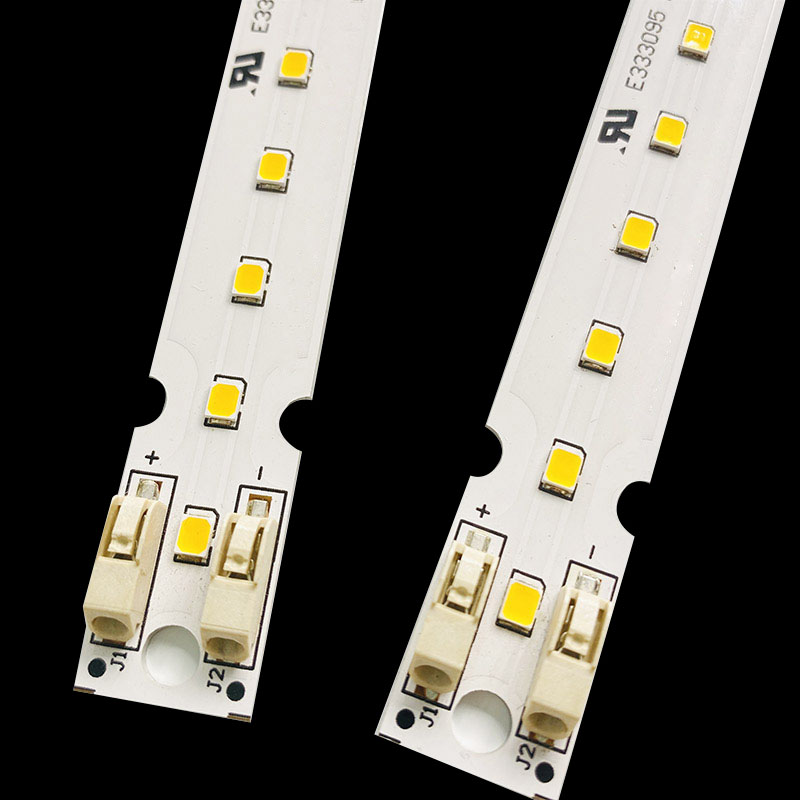

Product picture:

pcb led, led bulb circuit board, led bulb board, led bulb pcb board, led driver circuit board, printed circuit board for led, led light pcb circuit

pcb led, led bulb circuit board, led bulb board, led bulb pcb board, led driver circuit board, printed circuit board for led, led light pcb circuit

Product packaging:

Product Applications:
smd_led_pcb_board，led smd pcb board
